Ultra-Fine Wire Drawing Machines
Down to Φ0.025 mm with vertical, compact drawing sections.
Φ0.14–1.6 → Φ0.025–0.7 mm2,400 m/min24 dies
Available models · 07
Overview

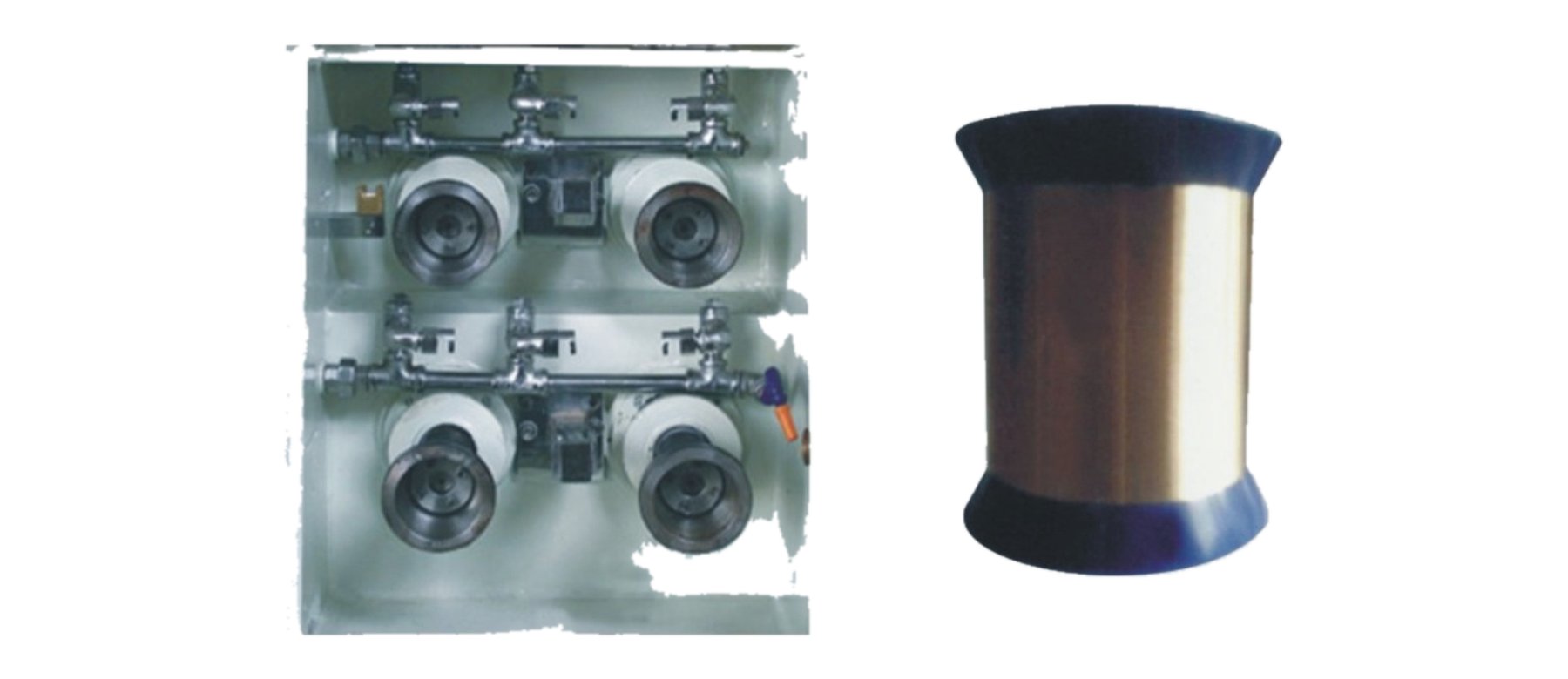

The 24VX and 22-series machines are built for ultra-fine and fine wire where surface quality and tension stability are critical. Vertical drawing sections, ceramic capstans and flat-belt transmission reduce vibration and noise.
Φ0.14–1.6 → Φ0.025–0.7 mmWire range
2,400 m/minMax speed
24 diesConfiguration
TECHNICAL DATA
Full specifications
| Specification | 24VX | 20D | 22D | 22DS | 22DH |
|---|---|---|---|---|---|
| Inlet diameter (mm) | Φ0.14–Φ0.45 | Φ0.15–Φ0.4 | Φ0.6–Φ1.2 | Φ0.6–Φ1.2 | Φ1.6 max |
| Outlet diameter (mm) | Φ0.025–Φ0.08 | Φ0.05–Φ0.12 | Φ0.1–Φ0.4 | Φ0.1–Φ0.4 | Φ0.2–Φ0.7 |
| Max drawing speed (m/min) | 1,500 | 2,000 | 2,000 | 2,000 | 2,400 |
| Max drawing dies | 24 | 20 | 22 | 22 | 22 |
| Slip ratio of machine | 8% | 10.5% | 15% | 15% | 15% |
| Fix-speed capstan slip | 7% | 6% | 8% | 8% | 13% |
| Capstan surface | Ceramic plasma | ||||
| Max capstan diameter (mm) | Φ100 | Φ120 | Φ194 | Φ242 | Φ242 |
| Fix-speed capstan diameter (mm) | Φ100 | Φ120 | Φ159 | Φ207 | Φ207 |
| Frame | Welded steel, annealed | One-piece cast iron | One-piece cast iron | One-piece cast iron | Welded steel, annealed |
| Main motor | 4 kW | 3.7 kW | 11 kW | 11 kW | 15 kW |
| Spooler motor | On request | 2.2 kW | 3.7 kW | 3.7 kW | 15 kW |
| Revise system | Full-line linear tension control | PID synchronous spooler | PID synchronous spooler | PID synchronous spooler | PID synchronous spooler |
| Inverter control | Dual inverter control | ||||
| Transmission | Flat belt | ||||
| Pay-off method | Brush pay-off | Over head | Over head | Over head | Over head |
| Traversing unit | Polished-rod traversing | Flat belt + synchronous motor | Flat belt + synchronous motor | Flat belt + synchronous motor | 90YYJR90-3 belt type |
| Tension control | Tension cone pulley | Weight-balanced swing arm | Weight-balanced swing arm | Weight-balanced swing arm | Cylinder sliding buffer |
| Drawing lubrication | Spray | ||||
| Suitable spool (mm) | Φ200 | Φ250 | Φ300 | Φ300 | Φ500 / Φ630 |
| Take-up capacity (kg) | 10 | 30 | 50–60 | 50–60 | 500 / 200 |
| Bobbin loading | Shaft type, screw clamp | ||||
| Power source (V) | 380 | ||||
| Brake | Electromagnetic | ||||
| Dimensions L×W×H (mm) | 1,740 × 1,300 × 1,450 | 1,900 × 1,350 × 1,750 | 2,050 × 1,600 × 1,900 | 2,050 × 1,600 × 1,900 | 2,400 × 1,350 × 1,970 |
| Weight (kg) | 1,200 | 1,900 | 2,000 | 2,000 | 4,500 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
