Copper-Clad Steel Wire Drawing Machines
CCS drawing from Φ2.6 mm to Φ0.08 mm with controlled slip.
Φ0.5–2.6 → Φ0.08–1.0 mm1,800 m/minCCS
Available models · 12
Overview

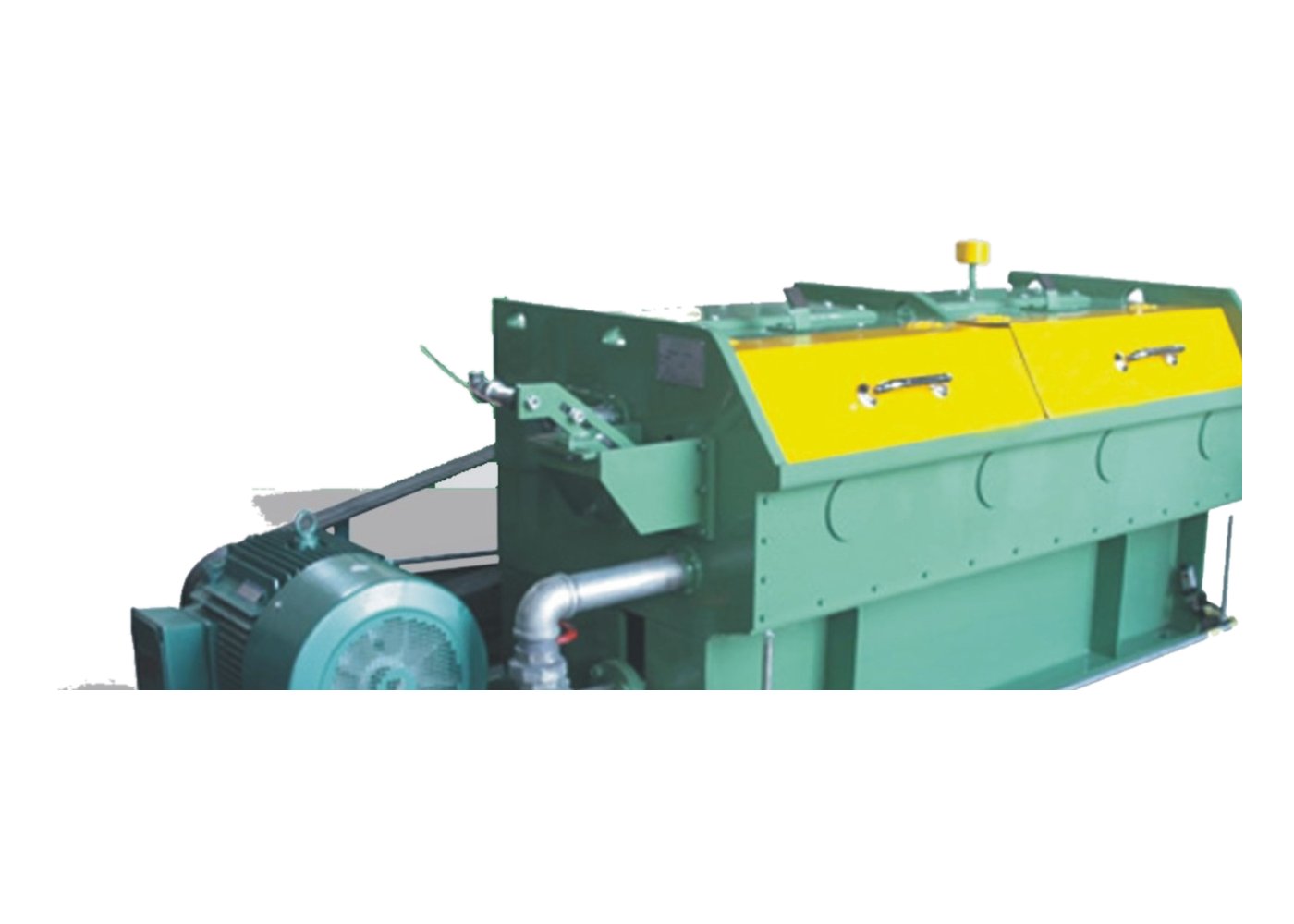

Copper-clad steel combines high tensile strength with a copper surface. The 24DG, 14DG and 17DG use tungsten-carbide capstans, chain or flat-belt drive and matched slip ratios to preserve the cladding through fine drawing.
Φ0.5–2.6 → Φ0.08–1.0 mmWire range
1,800 m/minMax speed
CCSConfiguration
TECHNICAL DATA
Full specifications
| Specification | 24DG | 14DG | 17DG |
|---|---|---|---|
| Inlet diameter (mm) | Φ0.5–Φ1.0 | Φ0.6–Φ1.6 | Φ1.2–Φ2.6 |
| Outlet diameter (mm) | Φ0.08–Φ0.25 | Φ0.25–Φ0.5 | Φ0.5–Φ1.0 |
| Max drawing speed (m/min) | 1,800 | 1,200 | 800 |
| Max drawing dies | 24 | 14 | 17 |
| Slip ratio of machine | 13% | 12% | 11% |
| Fix-speed capstan slip | 8% | ||
| Capstan surface | Tungsten carbide | ||
| Max capstan diameter (mm) | Φ194 | Φ380 | Φ254 |
| Fix-speed capstan diameter (mm) | Φ159 | Φ330 | Φ254 |
| Frame | One-piece cast iron | Welded steel, annealed | One-piece cast iron |
| Main motor | 15 kW | 18.5 kW | 45 kW |
| Spooler motor | 4 kW | 5.5 kW | 15 kW |
| Revise system | PID synchronous spooler | ||
| Inverter control | Dual inverter control | ||
| Transmission | Flat belt | Flat belt | Chain |
| Pay-off method | Over head | ||
| Traversing unit | Flat belt + timing motor | ||
| Tension control | Weight-balanced swing arm | Weight-balanced swing arm | Pneumatic swing arm |
| Drawing lubrication | Spray | Half immerse + spray | Spray |
| Suitable spool (mm) | Φ400 | Φ400 | Φ300 / Φ630 |
| Take-up capacity (kg) | 13 | 35 | 100–300 |
| Bobbin loading | Shaft type, screw clamp | ||
| Power source (V) | 380 | ||
| Brake | Electromagnetic | Electromagnetic | Pneumatic |
| Dimensions L×W×H (mm) | 2,050 × 1,600 × 1,900 | 1,950 × 1,100 × 1,750 | 3,500 × 1,200 × 1,250 |
| Weight (kg) | 2,000 | 2,000 | 4,500 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
AUXILIARY EQUIPMENT

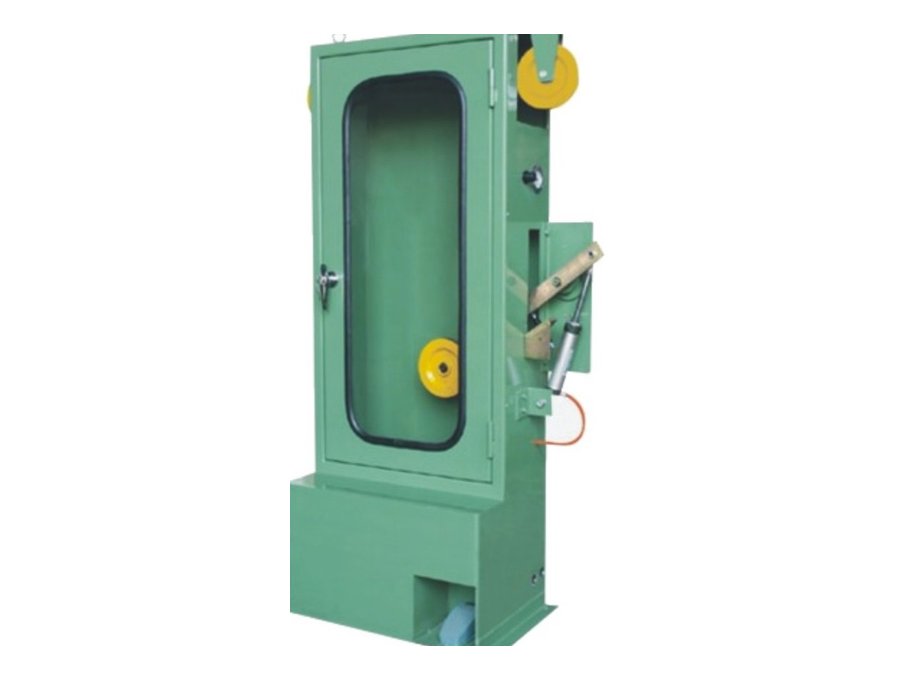

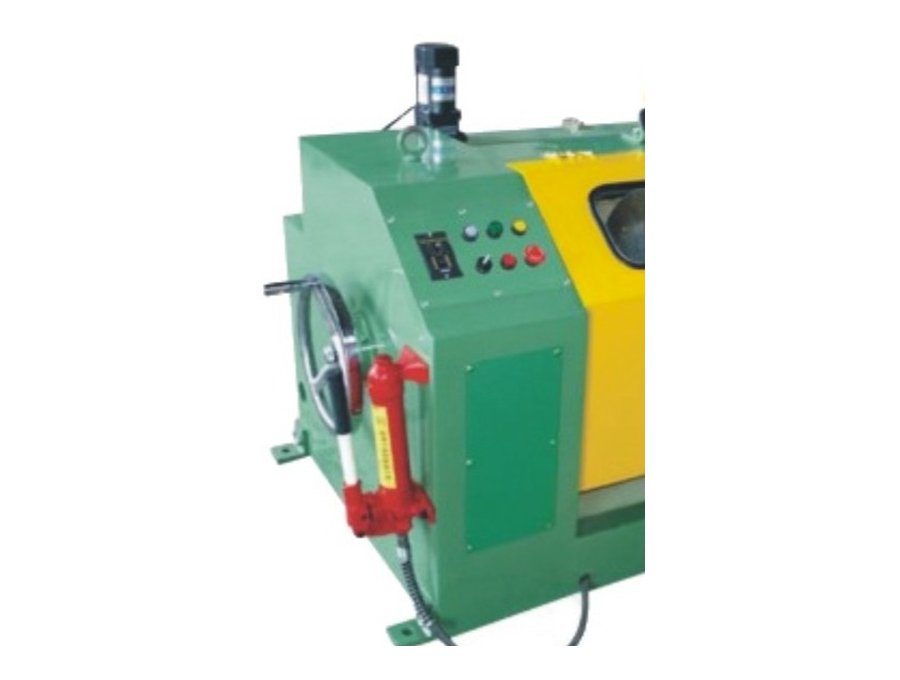

Range & auxiliary equipment
Photos show standard machines. Guards, colors and auxiliary equipment are configured per order.
