02EQUIPMENT SERIES
Medium & Large Wire Drawing Machine with Continuous Annealing
11-die gear drive, 900 m/min and 165 kVA in-line annealing.
Φ3.0–3.5 → Φ0.8–1.78 mm900 m/min11 dies
Available models · 02
Overview
The 11D is a compact medium-large drawing line for Φ3.0–3.5 mm copper inlet wire. A welded two-section frame, Φ280 mm tungsten-carbide capstans and DC three-section annealing deliver consistent wire quality at up to 900 m/min.
Φ3.0–3.5 → Φ0.8–1.78 mmWire range
900 m/minMax speed
11 diesConfiguration
TECHNICAL DATA
Full specifications
| Specification | 11D |
|---|---|
| Inlet diameter (mm) | Φ3.0–3.5 |
| Outlet diameter (mm) | Φ0.8–1.78 |
| Max drawing speed (m/min) | 900 |
| Max drawing dies | 11 |
| Slip ratio of machine | 19.5% (dies 1–10), 16.5% (die 11) |
| Capstan surface | Tungsten carbide |
| Max capstan diameter (mm) | Φ280 |
| Fix-speed capstan diameter (mm) | Φ280 |
| Frame | Welded, two connections |
| Main motor | 55 kW, three-phase AC |
| Spooler motor | 15 kW, three-phase AC |
| Revise system | PID synchronous spooler |
| Inverter control | DC speed regulator + dual inverter |
| Transmission | Gear |
| Pay-off method | Over head |
| Traversing unit | Flat belt + timing motor |
| Tension control | Pneumatic swing arm |
| Drawing lubrication | All immerse + spray |
| Max annealing voltage (V) | 55 |
| Max annealing current (A) | 3,000 |
| Annealing capacity (kVA) | 165 |
| Suitable spool (mm) | PND630 |
| Take-up capacity (kg) | 500 |
| Power source (V) | 380 |
| Brake | Pneumatic |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
AUXILIARY EQUIPMENT

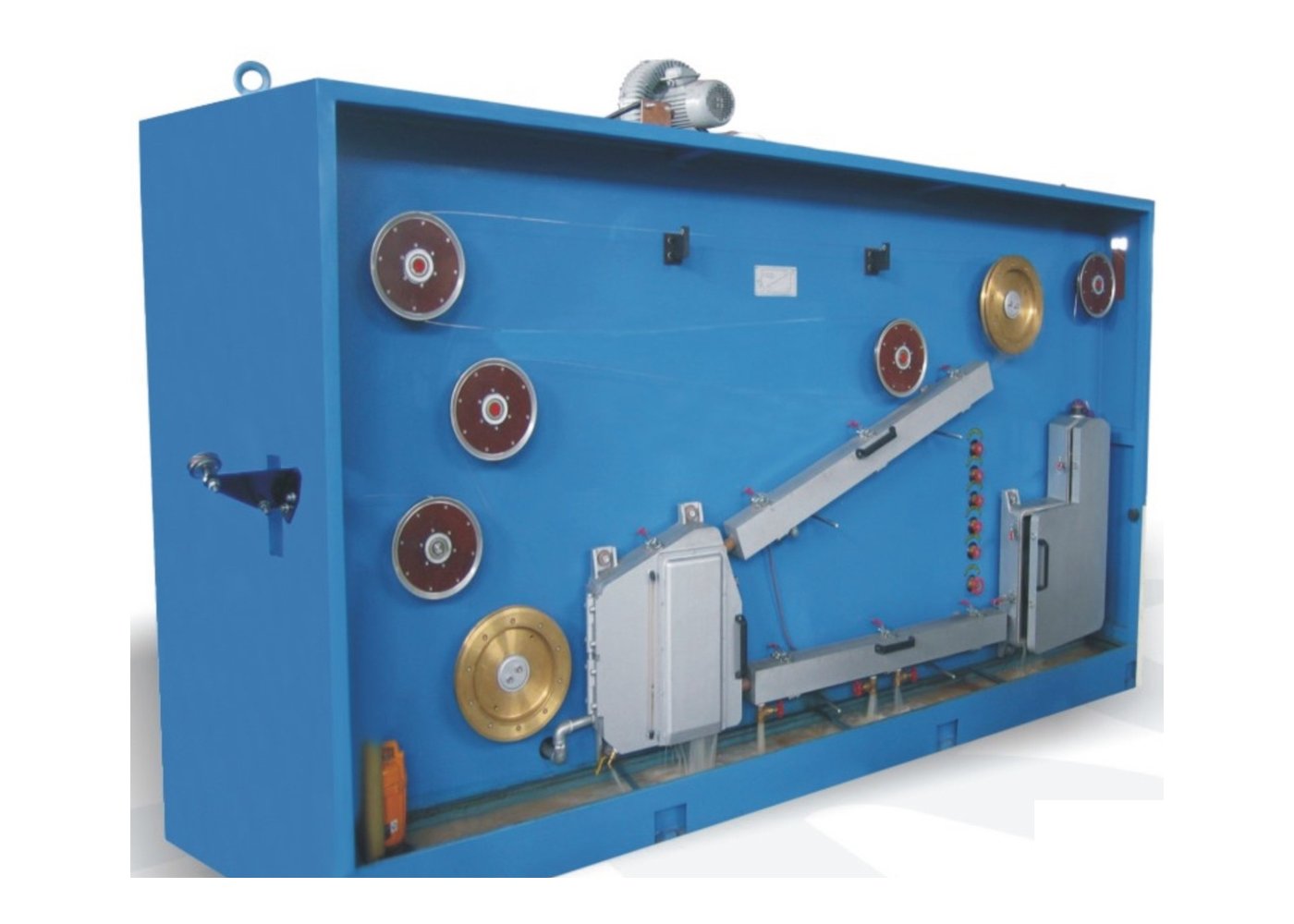

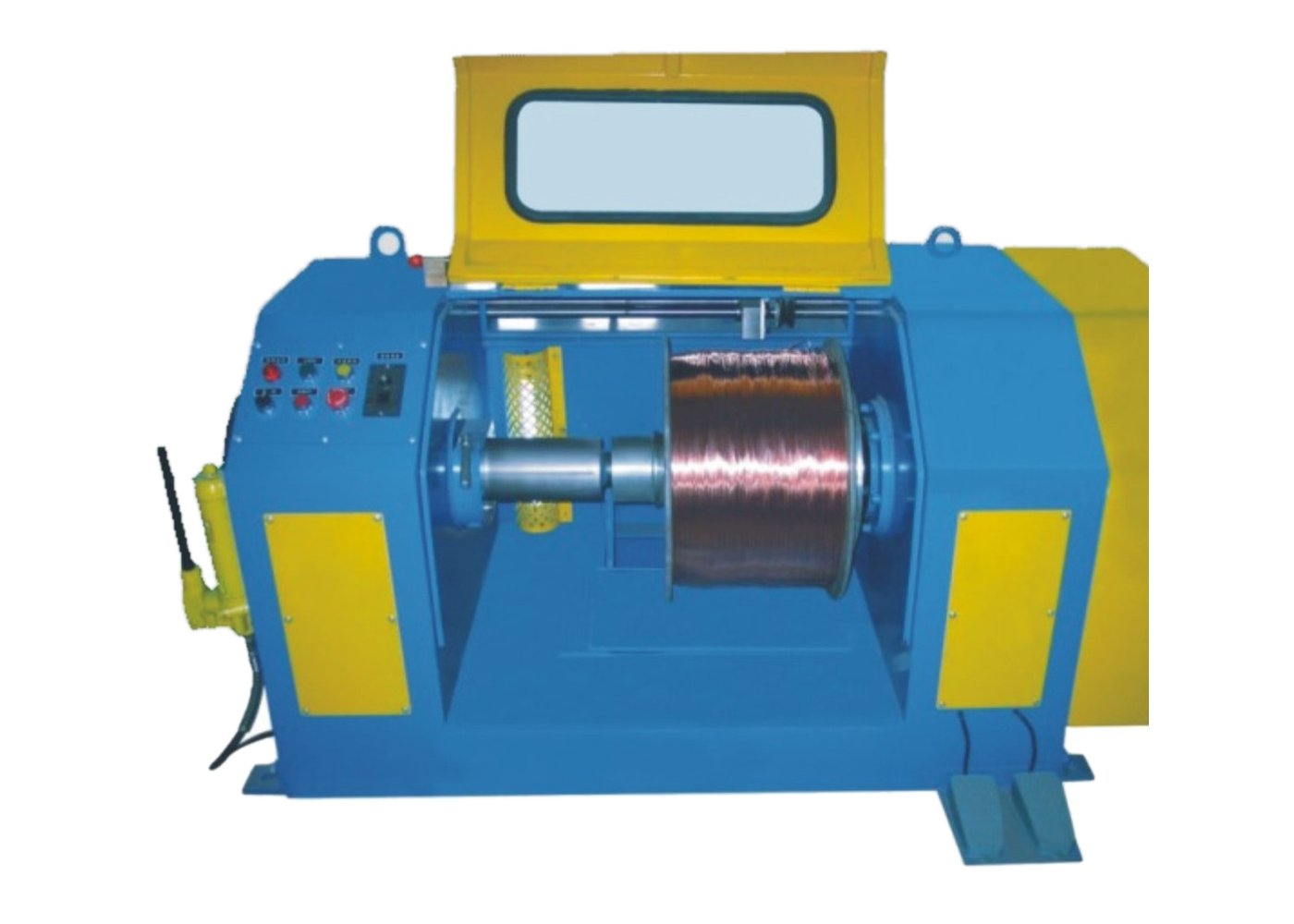

Range & auxiliary equipment
