01
Bare copper
Large Wire Drawing Machine with Continuous Annealing
Rod breakdown from Φ8 mm with in-line annealing at up to 2,100 m/min.
Φ8 → Φ1.2–4.0 mm2,100 m/min13 dies
View series
EQUIPMENT
Wire drawing machines and complete line equipment.
Fourteen equipment series for copper, copper-clad aluminium, copper-clad steel and aluminium-magnesium wire — from rod breakdown to ultra-fine drawing, annealing and tinning.
Bare copper & alloy series
10 Machine series
02
Bare copper

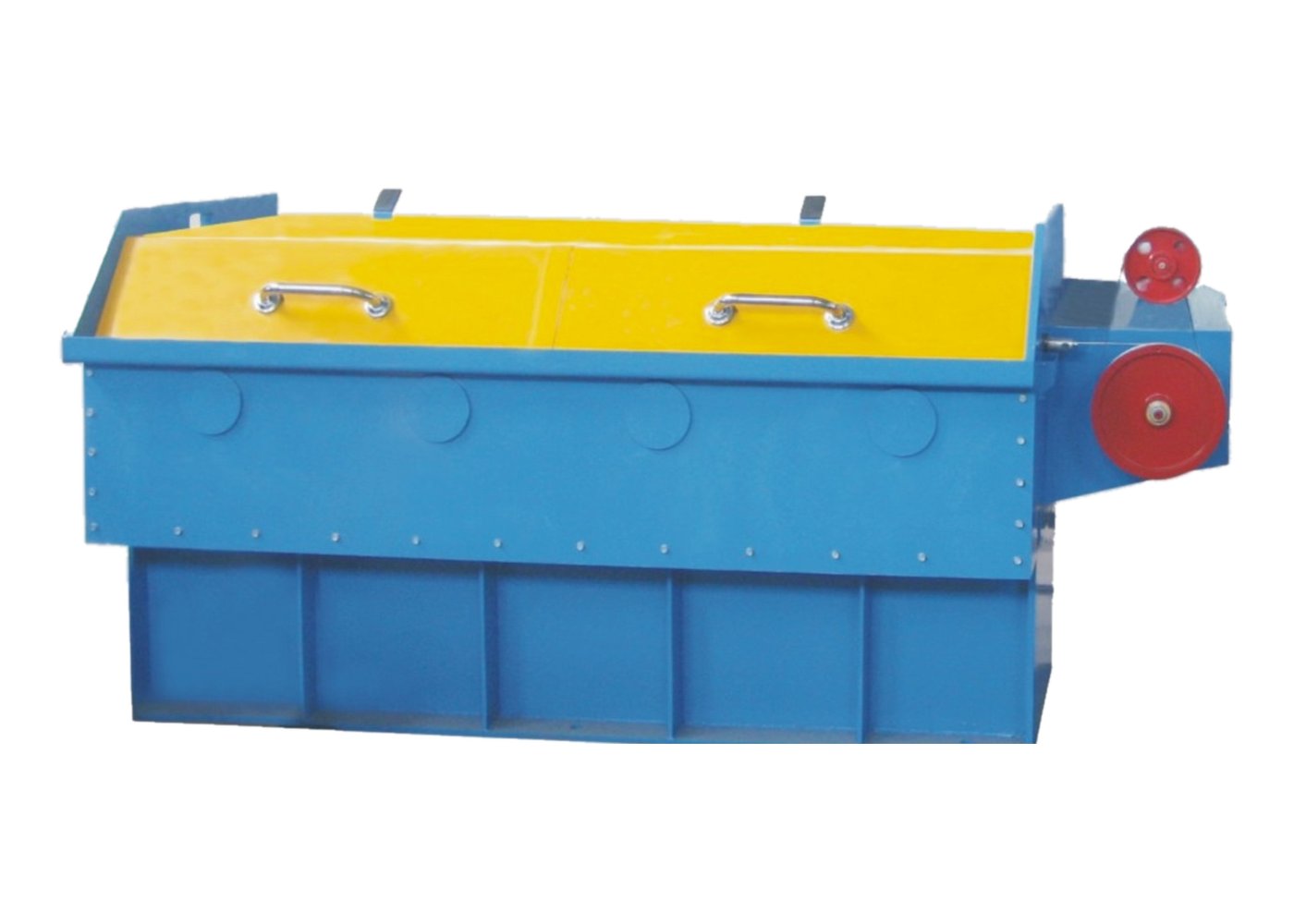

Medium & Large Wire Drawing Machine with Continuous Annealing
11-die gear drive, 900 m/min and 165 kVA in-line annealing.
Φ3.0–3.5 → Φ0.8–1.78 mm900 m/min11 dies
View series
03
Bare copper
Gear & Chain Medium Wire Drawing Machines
17-die medium drawing in 1,200–1,800 m/min configurations.
Φ2.5–3.5 → Φ0.4–1.6 mm1,800 m/min17 dies
View series
04
Bare copper

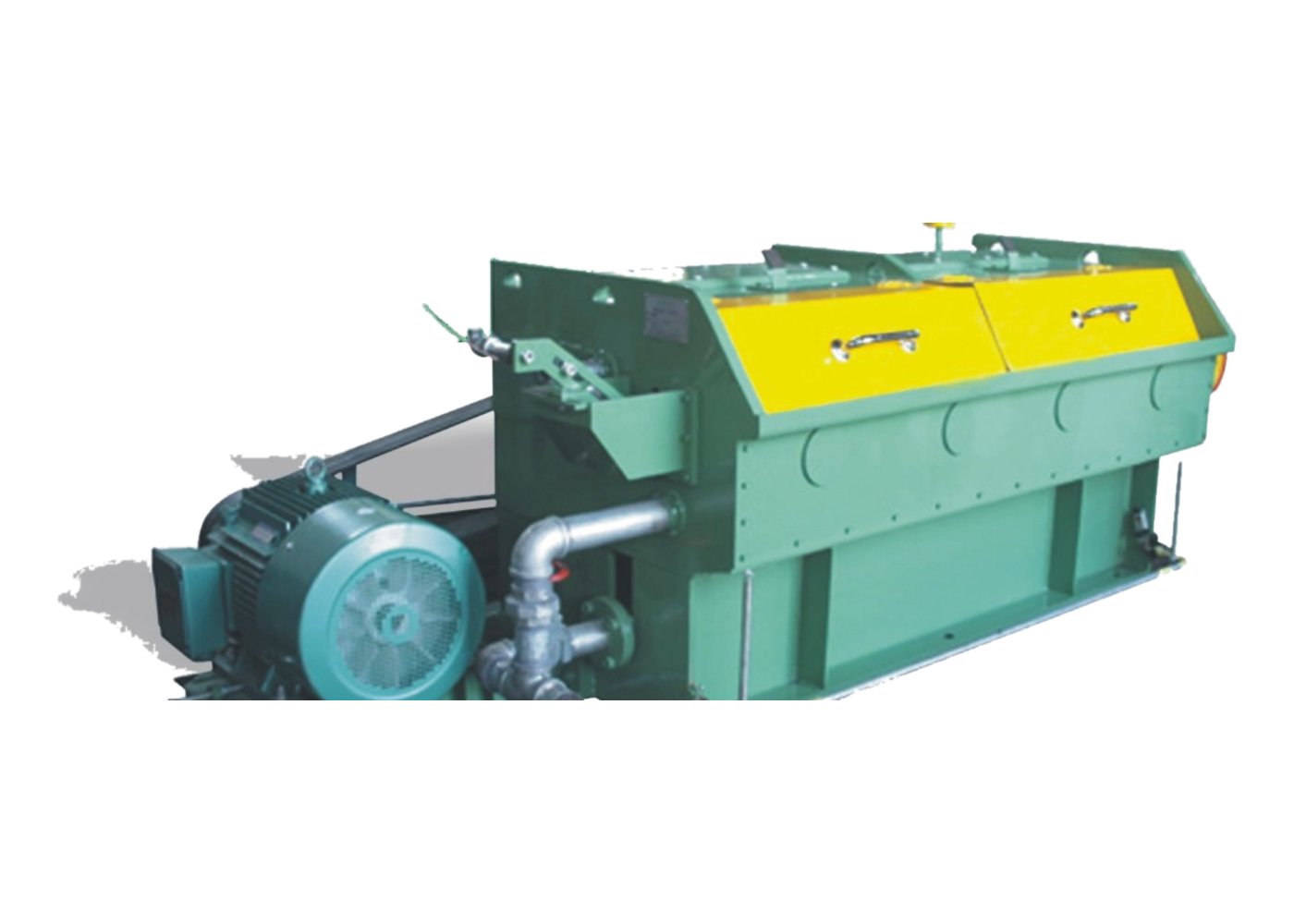

Medium Wire Drawing Machine with Continuous Annealing
Gear and chain medium drawing with DC three-section annealing, up to 1,500 m/min.
Φ2.5–3.5 → Φ0.4–1.6 mm1,500 m/minDC 3-section annealing
View series
05
Bare copper

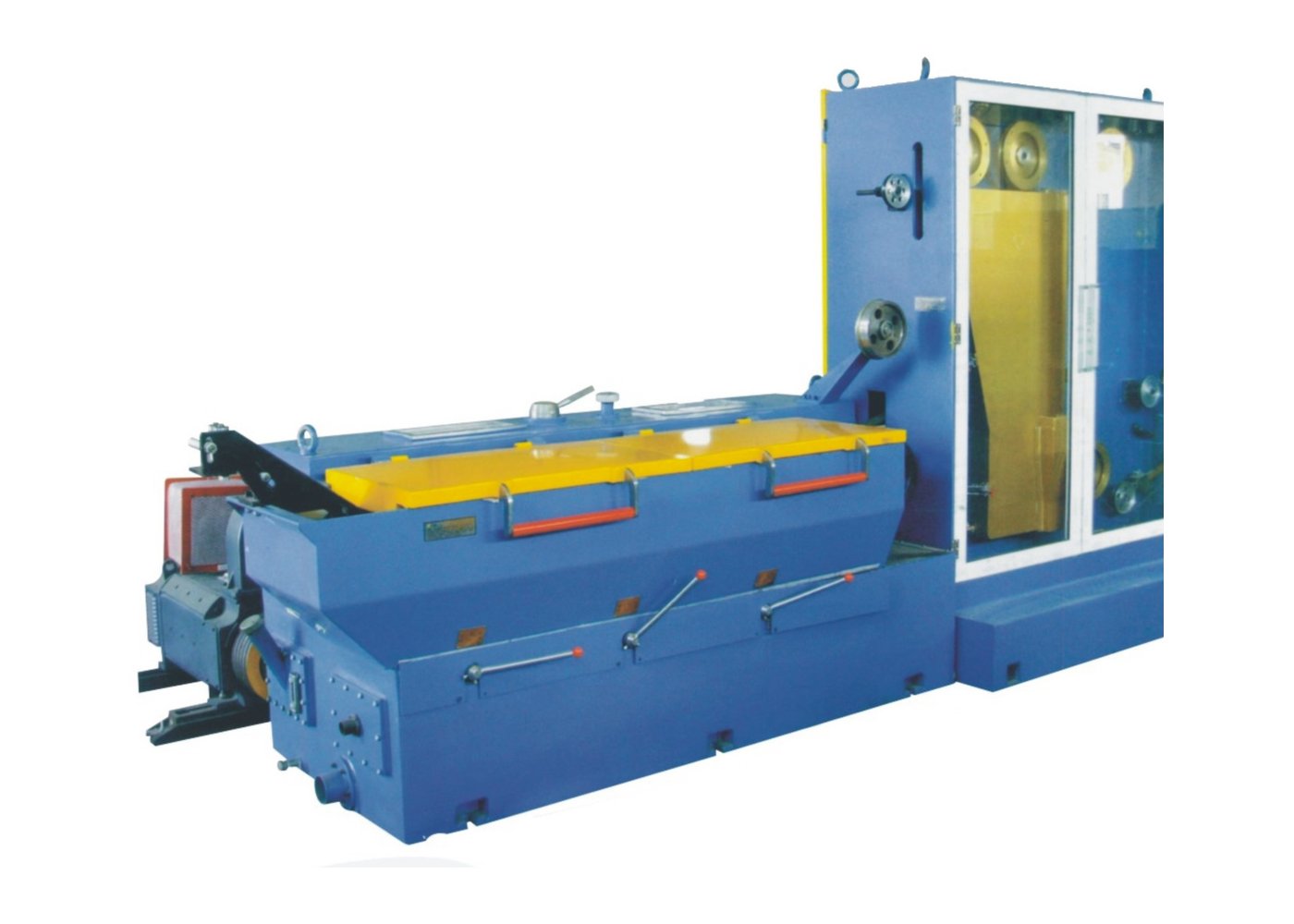

Medium & Fine Wire Drawing with Continuous Annealing + Preheating
Two-zone thermal control: DC three-section annealing plus preheating.
Φ0.26–3.5 → Φ0.25–1.2 mm1,500 m/minAnnealing + preheating
View series
06
Bare copper
Fine Wire Drawing Machines (High-Speed Series)
24-die high-speed fine drawing for 0.08–0.6 mm wire, up to 2,500 m/min.
Φ0.5–1.6 → Φ0.08–0.6 mm2,500 m/min24 dies
View series
07
Bare copper

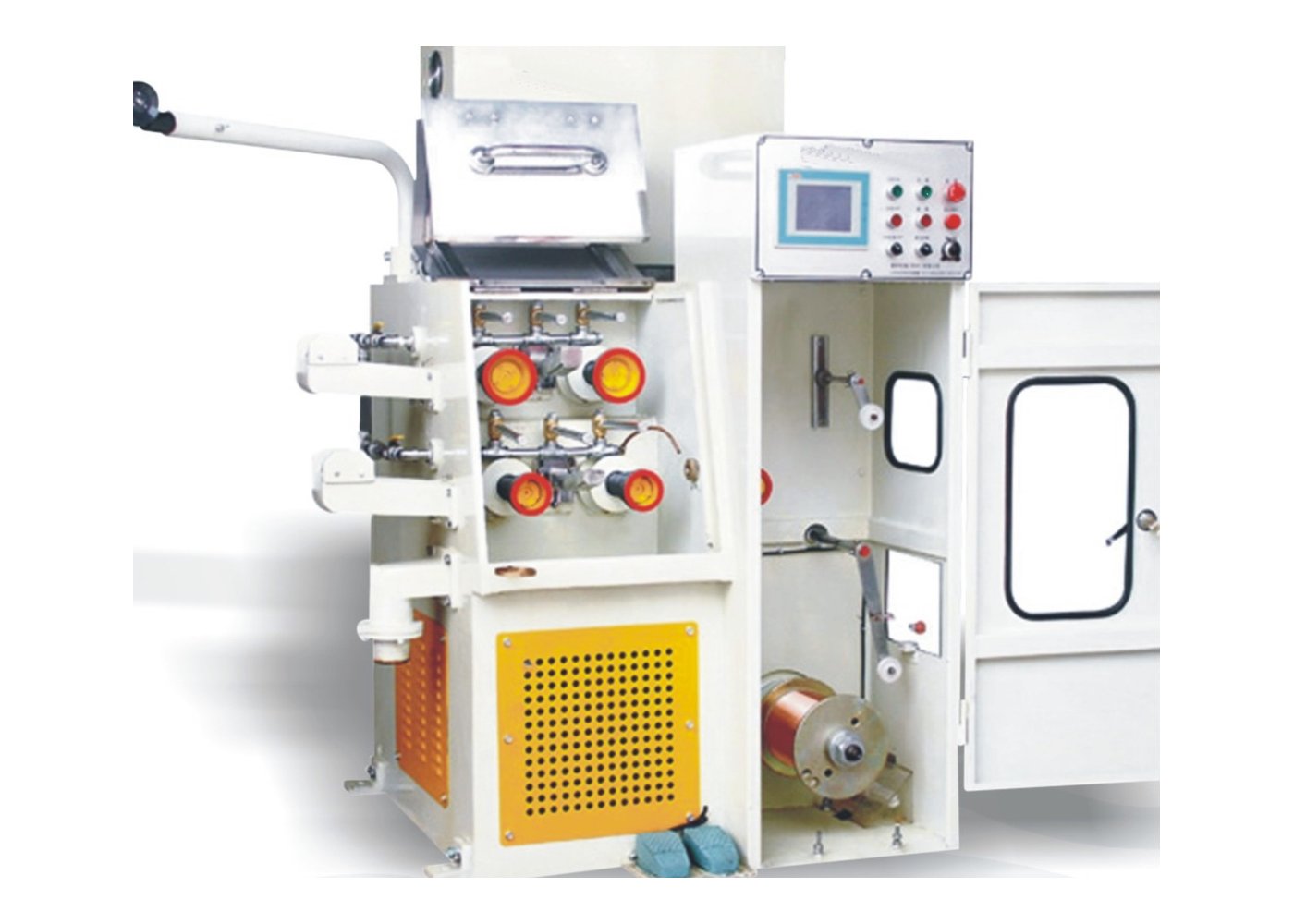

Ultra-Fine Wire Drawing Machines
Down to Φ0.025 mm with vertical, compact drawing sections.
Φ0.14–1.6 → Φ0.025–0.7 mm2,400 m/min24 dies
View series
08
Bare copper

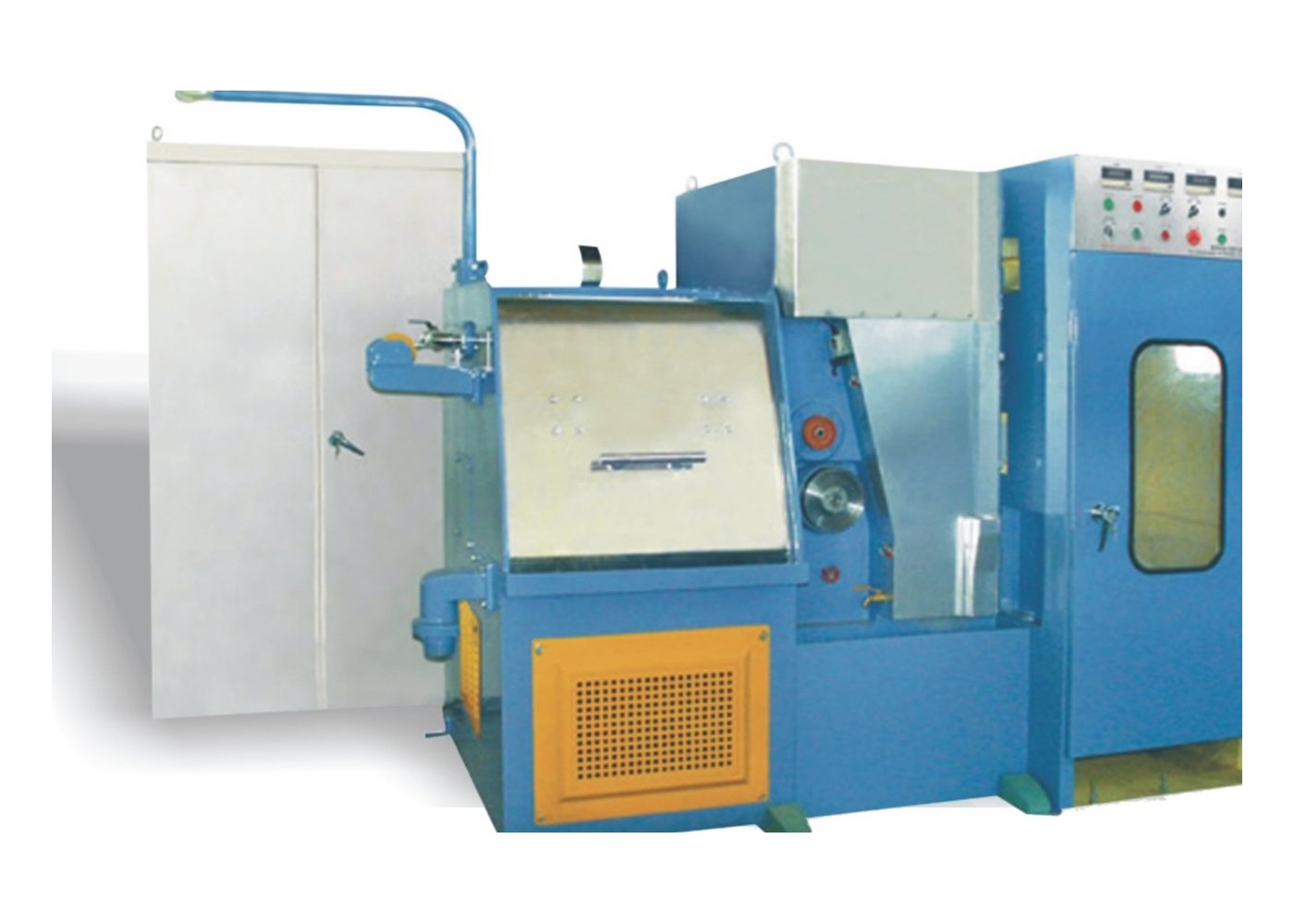

Fine Wire Drawing Machine with Continuous Annealing
In-line DC annealing for 0.08–0.32 mm wire at up to 2,000 m/min.
Φ0.5–1.6 → Φ0.08–0.32 mm2,000 m/minDC 3-section annealing
View series
09
Bare copper
Annealing & Tinning Machine
24–40 heads, even furnace temperature and double tin furnace.
Φ0.1–0.32 mm finished300 m/min24–40 heads
View series
13
Bare copper
Aluminum-Magnesium Alloy Wire Drawing Machines
30-die alloy drawing at 2,500 m/min with ceramic capstans.
Φ0.5–1.2 → Φ0.1–0.25 mm2,500 m/min30 dies
View series
Copper-clad wire series
3 Machine series
10
Copper-clad
Copper-Clad Aluminum Wire Drawing Machines
Six CCA configurations from Φ3.0 mm inlet to Φ0.08 mm outlet.
Φ0.15–3.0 → Φ0.08–1.2 mm2,000 m/minCCA
View series
11
Copper-clad

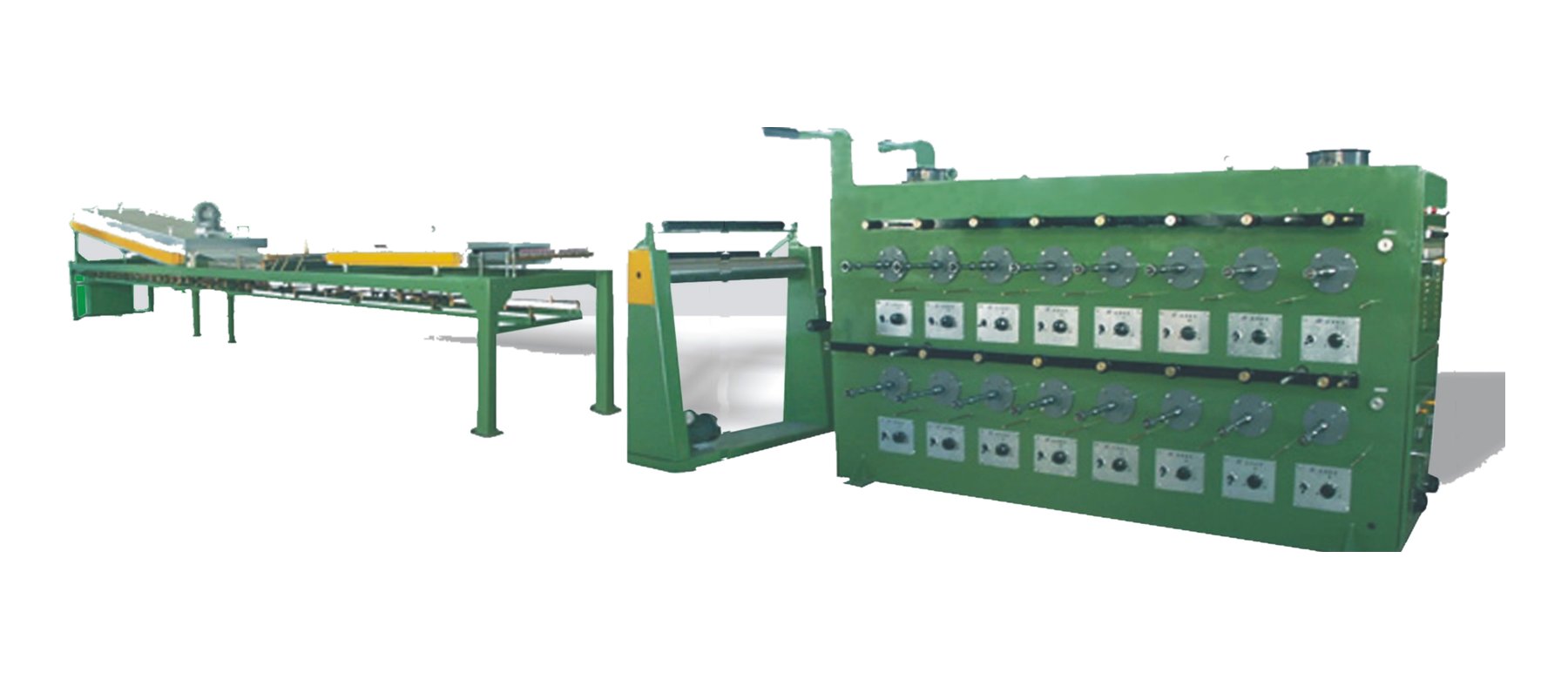

Copper-Clad Aluminum & Steel Conduit Annealing Machines
Tubular annealing for 24–40 head CCA and CCS lines.
Φ0.1–0.4 mm finished120–220 m/min24–40 heads
View series
12
Copper-clad

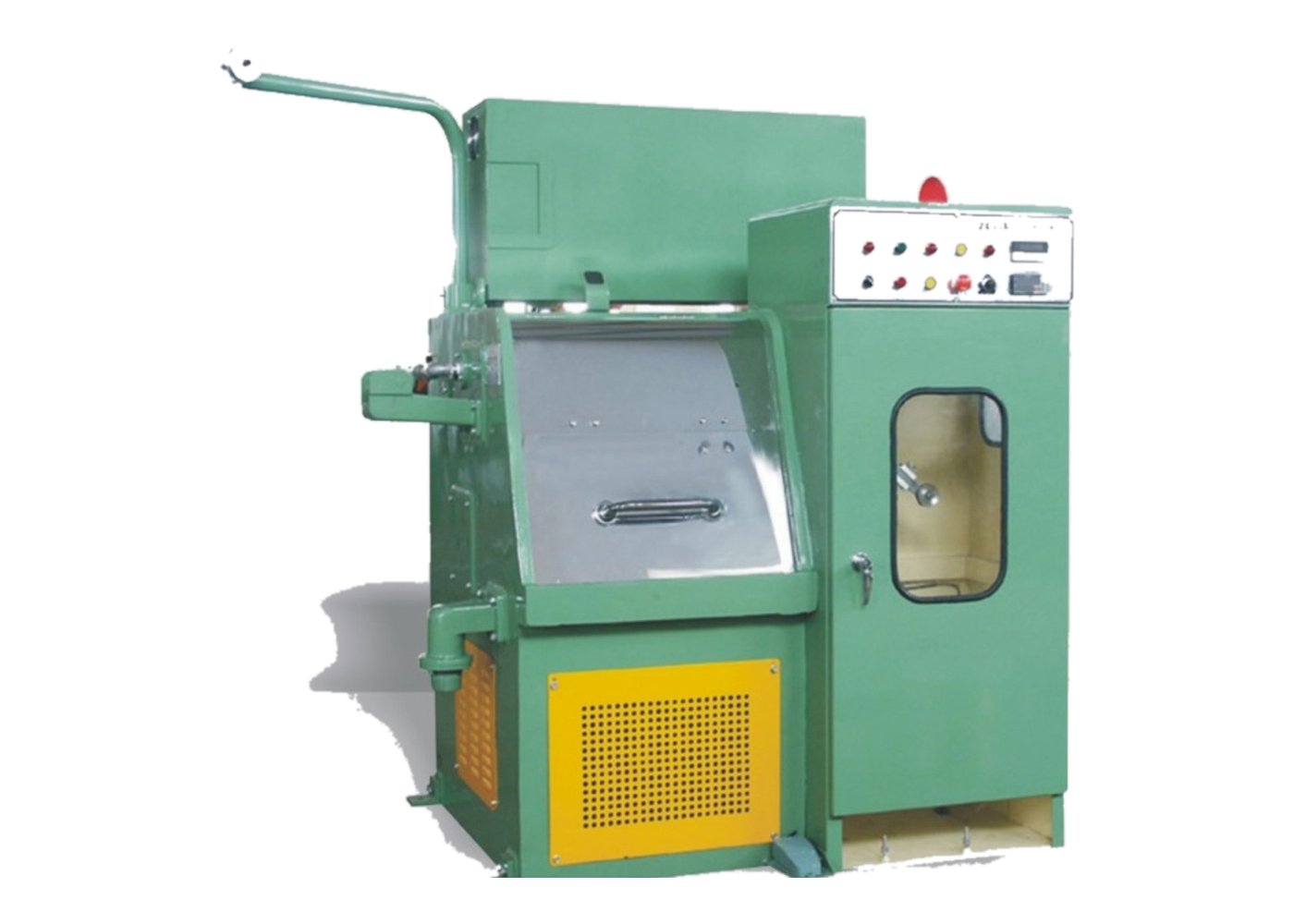

Copper-Clad Steel Wire Drawing Machines
CCS drawing from Φ2.6 mm to Φ0.08 mm with controlled slip.
Φ0.5–2.6 → Φ0.08–1.0 mm1,800 m/minCCS
View series
Auxiliary equipment
1 Machine series
14
Auxiliary

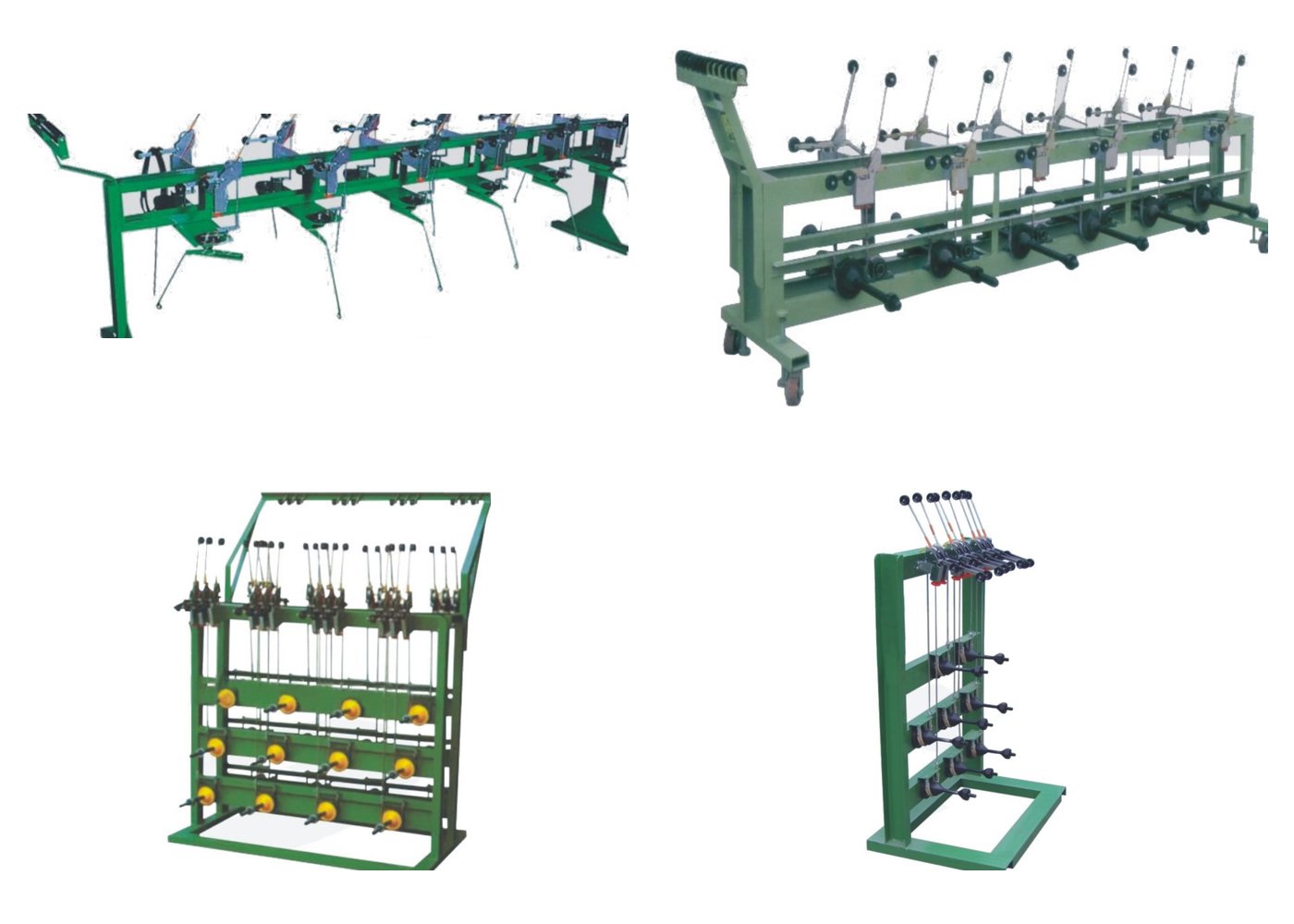

Pay-Off Stands & Auxiliary Equipment
Eight pay-off designs for 0.025–8.0 mm wire lines.
Φ0.025–8.0 mm linesConstant tension8 designs
View series
Specifications are based on standard configurations and can be adapted to material, spool size and local power supply. Please confirm details with our engineers before ordering.
Tell us your wire. We will configure the line.
Share the incoming rod, finished diameter, material and target output. Our engineers will respond with a recommended machine configuration.
