03EQUIPMENT SERIES
Gear & Chain Medium Wire Drawing Machines
17-die medium drawing in 1,200–1,800 m/min configurations.
Φ2.5–3.5 → Φ0.4–1.6 mm1,800 m/min17 dies
Available models · 03
Overview

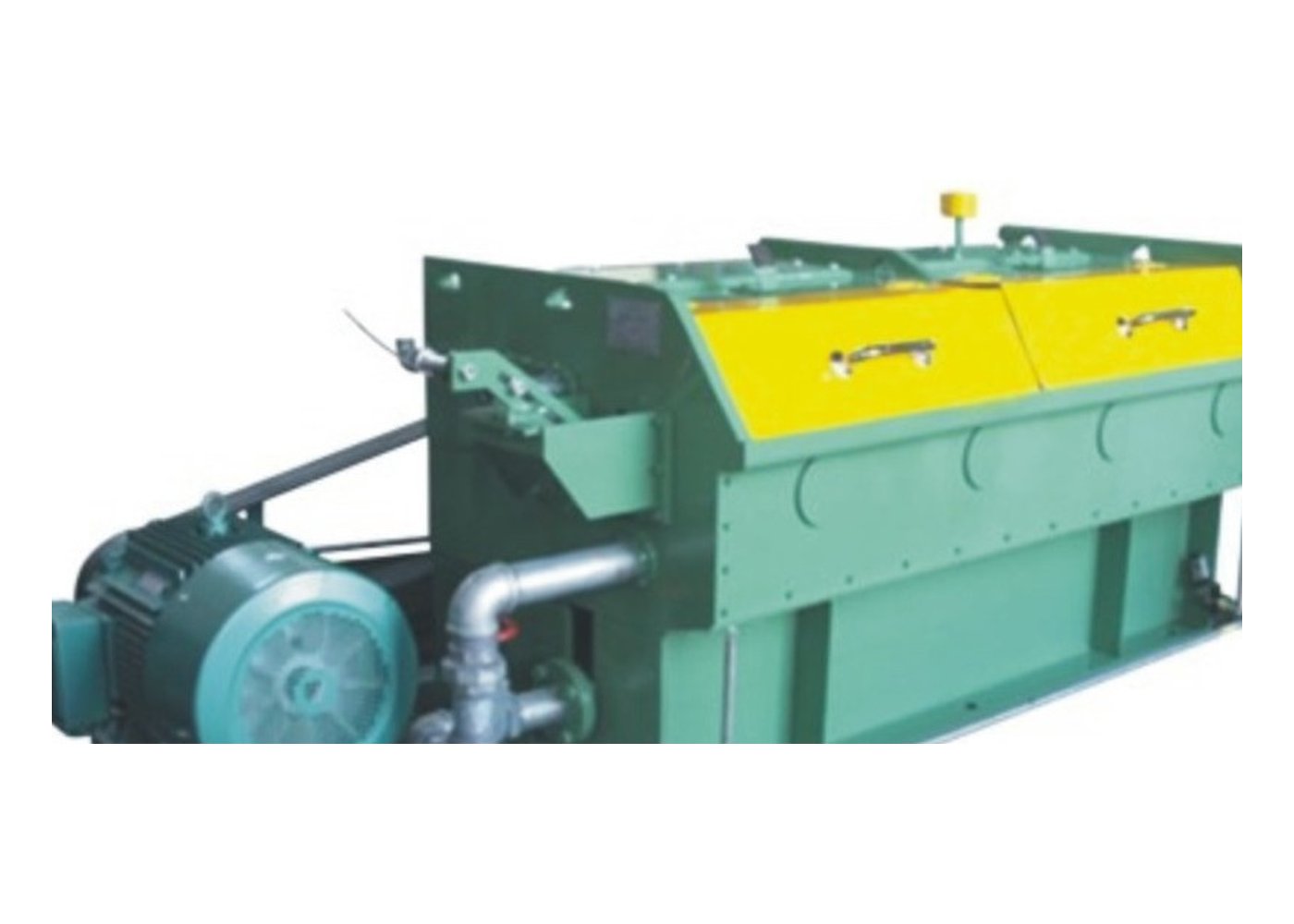

Four 17-die medium drawing platforms cover gear and chain drive, cast and welded frames, and spray or all-immerse lubrication. Choose 17DS for 1,800 m/min high-speed production, or 17D/17MD for proven chain-drive reliability.
Φ2.5–3.5 → Φ0.4–1.6 mmWire range
1,800 m/minMax speed
17 diesConfiguration
TECHNICAL DATA
Full specifications
| Specification | 17MD | 17MDS | 17DS | 17D |
|---|---|---|---|---|
| Inlet diameter (mm) | Φ2.5–Φ3.2 | Φ2.5–Φ3.2 | Φ2.5–Φ3.5 | Φ2.5–Φ3.2 |
| Outlet diameter (mm) | Φ0.4–Φ1.2 | Φ0.4–Φ1.2 | Φ0.4–Φ1.6 | Φ0.4–Φ1.2 |
| Max drawing speed (m/min) | 1,200 | 1,200 | 1,800 | 1,200 |
| Max drawing dies | 17 | |||
| Slip ratio of machine | 15% | 15% | 20% | 18% |
| Fix-speed capstan slip | 11% | 11% | 15% | 12.5% |
| Capstan surface | Tungsten carbide | |||
| Max capstan diameter (mm) | Φ257 | Φ257 | Φ250 | Φ260 |
| Fix-speed capstan diameter (mm) | Φ254 | Φ254 | Φ250 | Φ280 |
| Frame | One-piece cast iron | Welded steel, annealed | One-piece cast iron | One-piece cast iron |
| Main motor | 37 kW, three-phase AC | 37 kW, three-phase AC | 55 kW, three-phase AC | 37 kW, three-phase AC |
| Spooler motor | 11 kW, three-phase AC | 11 kW, three-phase AC | 15 kW, three-phase AC | 11 kW, three-phase AC |
| Revise system | PID synchronous spooler | |||
| Inverter control | Dual inverter control | |||
| Transmission | Chain | High-precision ground gear | High-precision ground gear | Chain |
| Pay-off method | Over head | |||
| Traversing unit | Flat belt + timing motor | |||
| Tension control | Pneumatic swing arm | |||
| Drawing lubrication | Spray | Spray | All immerse | Spray |
| Suitable spool (mm) | Φ500 / Φ630 | |||
| Take-up capacity (kg) | 100–400 | |||
| Bobbin loading | Shaft type, screw clamp | |||
| Power source (V) | 380 | |||
| Brake | Pneumatic | |||
| Dimensions L×W×H (mm) | 3,500 × 1,200 × 1,250 | 3,500 × 1,200 × 1,250 | 2,100 × 1,200 × 995 | 3,500 × 1,200 × 1,250 |
| Weight (kg) | 4,800 | 4,800 | 5,100 | 4,600 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.

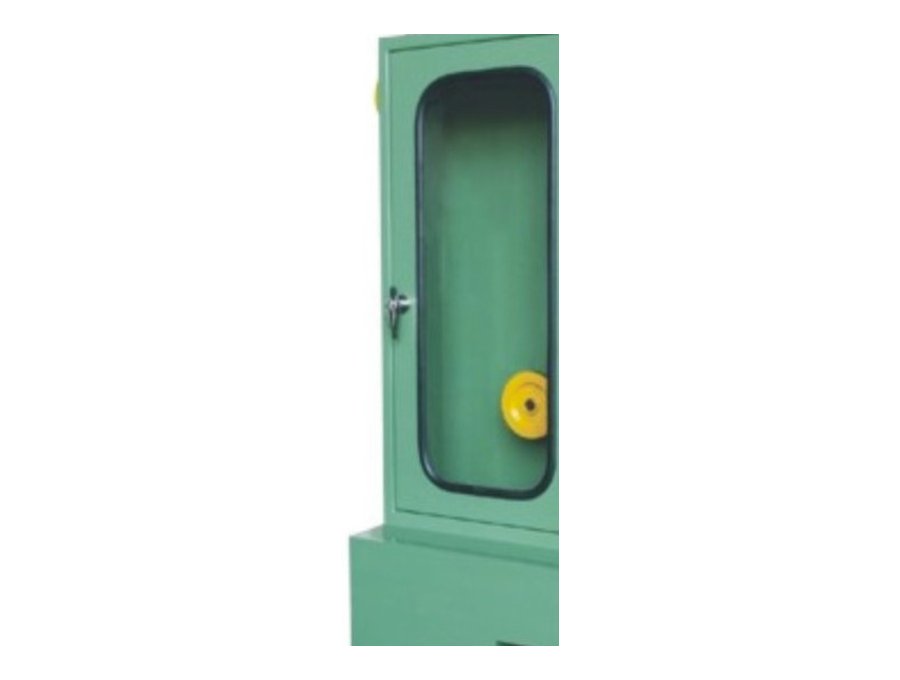

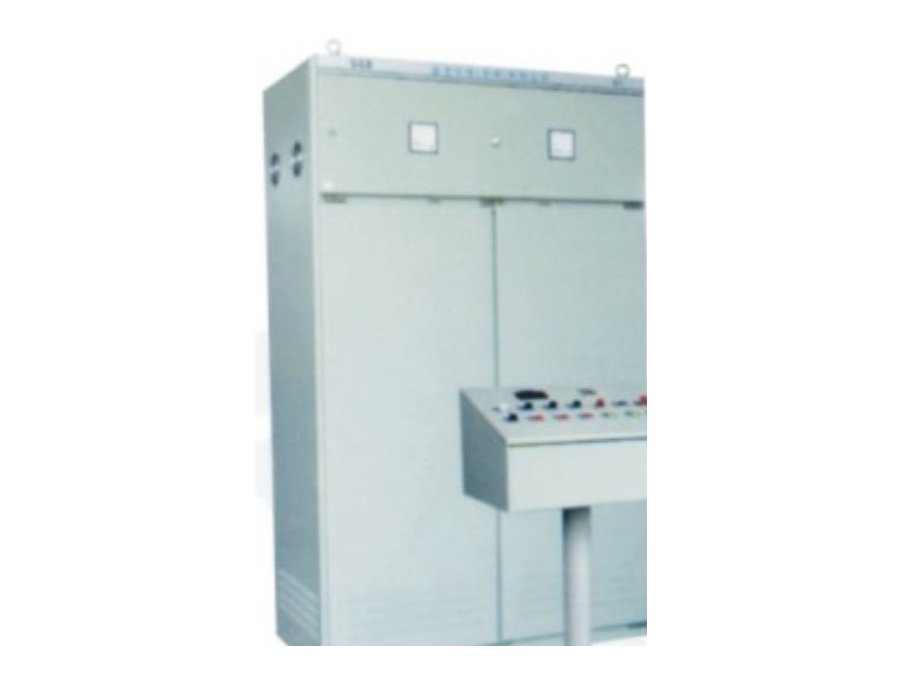

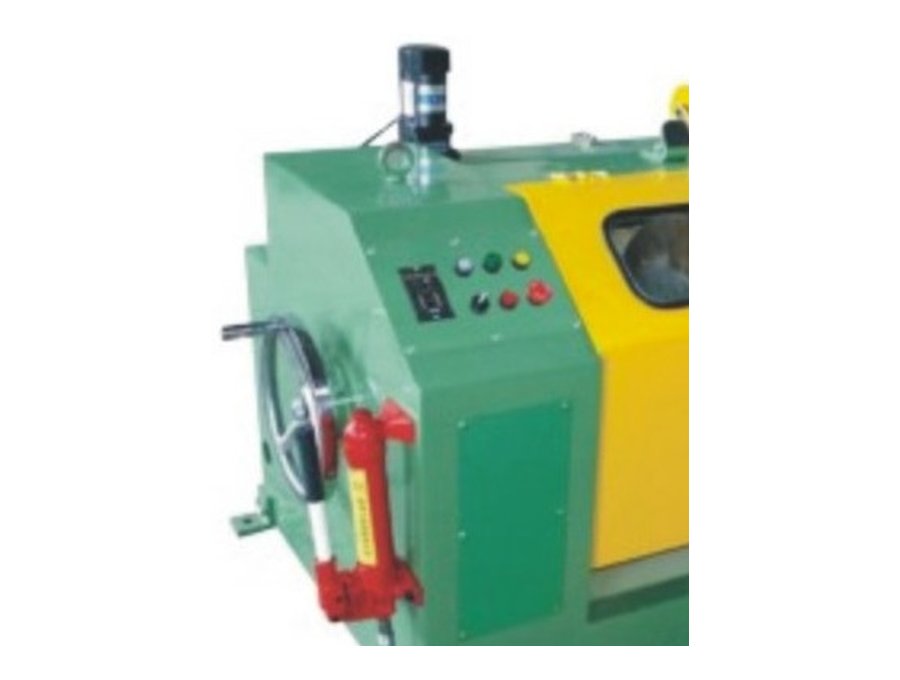

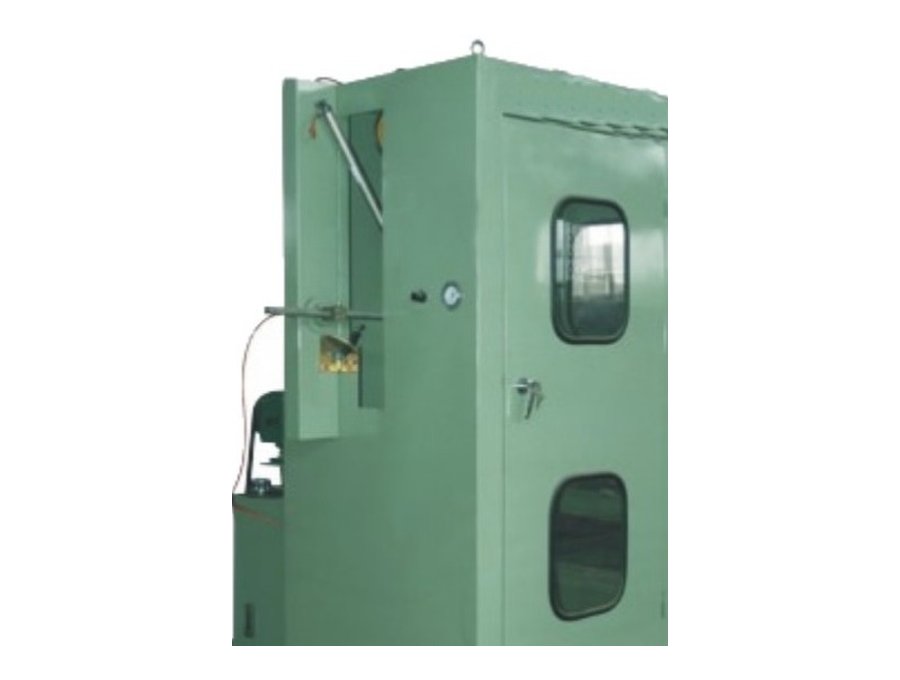

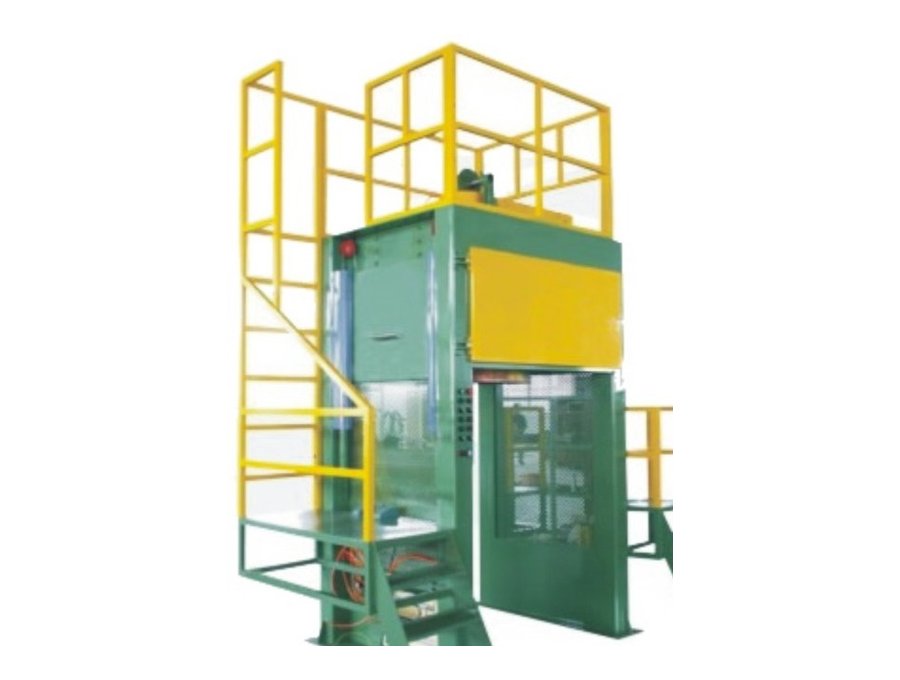

AUXILIARY EQUIPMENT
Range & auxiliary equipment
Photos show standard machines. Guards, colors and auxiliary equipment are configured per order.
