08EQUIPMENT SERIES
Fine Wire Drawing Machine with Continuous Annealing
In-line DC annealing for 0.08–0.32 mm wire at up to 2,000 m/min.
Φ0.5–1.6 → Φ0.08–0.32 mm2,000 m/minDC 3-section annealing
Available models · 08
Overview

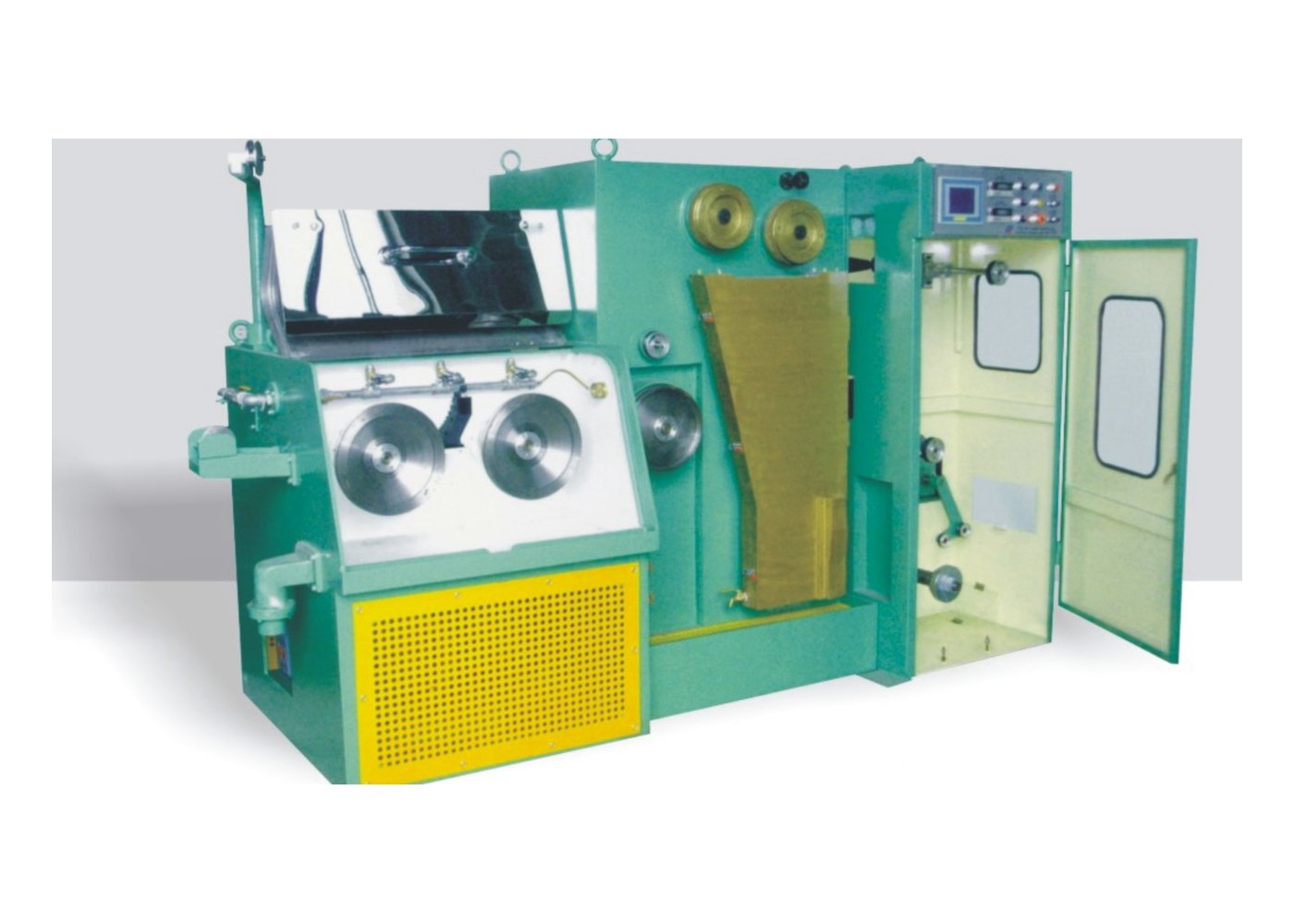

The 22DT/24DT and 14DT combine fine drawing with DC three-section annealing. PID synchronous spooling, electromagnetic braking and Ø300 mm spools make these lines well suited to enameled wire and electronic conductor production.
Φ0.5–1.6 → Φ0.08–0.32 mmWire range
2,000 m/minMax speed
DC 3-section annealingConfiguration
TECHNICAL DATA
Full specifications
| Specification | 22DT | 24DT | 14DT |
|---|---|---|---|
| Inlet diameter (mm) | Φ0.8–Φ1.2 | Φ0.5–Φ1.0 | Φ0.8–Φ1.6 |
| Outlet diameter (mm) | Φ0.10–Φ0.32 | Φ0.08–Φ0.25 | Φ0.25–Φ0.6 |
| Max drawing speed (m/min) | 2,000 | 2,000 | 1,200 |
| Main motor | 11 kW | 11 kW | 15 kW |
| Annealing power | 16 kVA | 16 kVA | 30 kVA |
| Spooler motor | 3.7 kW | 3.7 kW | 5.5 kW |
| Annealing method | DC three-section annealing | ||
| Suitable spool (mm) | Φ300 | ||
| Revise system | PID synchronous spooler | ||
| Take-up capacity (kg) | 50 | ||
| Power source (V) | 380 | ||
| Brake | Electromagnetic | ||
| Dimensions L×W×H (mm) | 2,100 × 1,600 × 1,700 | 2,100 × 1,600 × 1,700 | 2,568 × 1,538 × 2,974 |
| Weight (kg) | 2,600 | 2,600 | 3,000 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
AUXILIARY EQUIPMENT
Range & auxiliary equipment
Photos show standard machines. Guards, colors and auxiliary equipment are configured per order.
