Large Wire Drawing Machine with Continuous Annealing
Rod breakdown from Φ8 mm with in-line annealing at up to 2,100 m/min.
Φ8 → Φ1.2–4.0 mm2,100 m/min13 dies
Available models · 01
Overview
The 9DT and 13DT combine heavy-duty drawing with continuous annealing in one line. A fission-cast frame, Φ450 mm tungsten-carbide capstans and a 360 kVA annealing system support stable production from 8 mm copper rod to 1.2–4.0 mm wire.
Φ8 → Φ1.2–4.0 mmWire range
2,100 m/minMax speed
13 diesConfiguration
TECHNICAL DATA
Full specifications
| Specification | 13DT | 9DT |
|---|---|---|
| Inlet diameter (mm) | Φ8 | |
| Outlet diameter (mm) | Φ1.2–Φ4.0 | Φ2.2–Φ4.0 |
| Max drawing speed (m/min) | 2,100 | 1,080 |
| Max drawing dies | 13 | 9 |
| Slip ratio of machine | 1.40–1.20 | |
| Capstan surface | Tungsten carbide | |
| Max capstan diameter (mm) | Φ450 | |
| Fix-speed capstan diameter (mm) | Φ450 | |
| Frame | Fission casting | |
| Main motor | 250 kW, DC | |
| Fix-speed motor | 75 kW, DC | |
| Spooler motor | 15 kW coil / 2 × 15 kW reels | |
| Revise system | PID synchronous spooler | |
| Inverter control | DC speed regulator + dual inverter | |
| Transmission | Gear | |
| Pay-off method | Over head | |
| Tension control | Pneumatic | |
| Drawing lubrication | All immerse | |
| Max annealing voltage (V) | 60 | |
| Max annealing current (A) | 6,000 | |
| Annealing capacity (kVA) | 360 | |
| Suitable spool (mm) | Coil drum Φ800 / double reel Φ500–Φ630 | |
| Take-up capacity (kg) | 1,200 kg coil / 500 kg double reel | |
| Power source (V) | 380 | |
| Brake | Pneumatic | |
| Dimensions L×W×H (mm) | 26,400 × 6,700 × 5,000 | 23,600 × 6,700 × 5,000 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
AUXILIARY EQUIPMENT
Range & auxiliary equipment

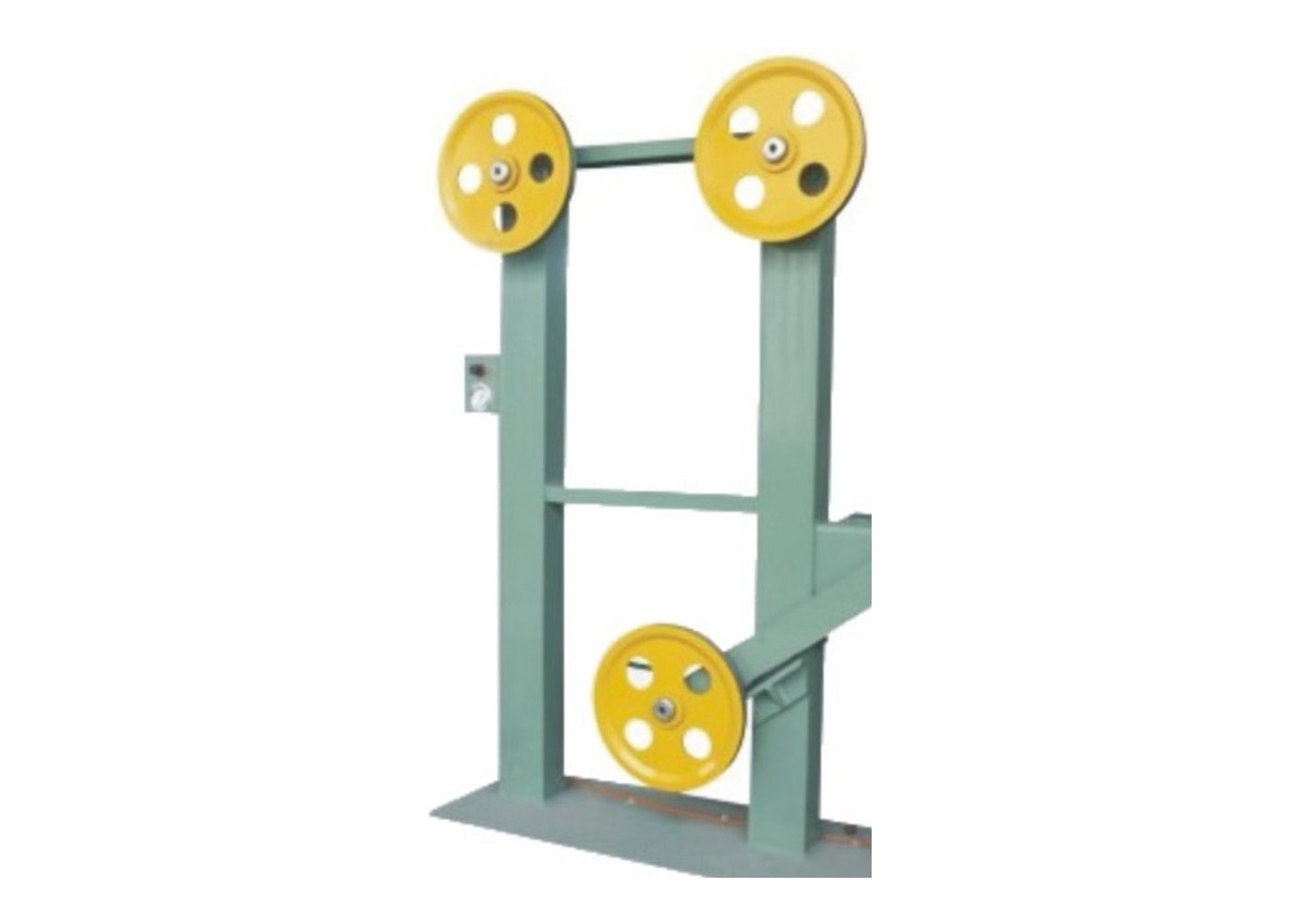

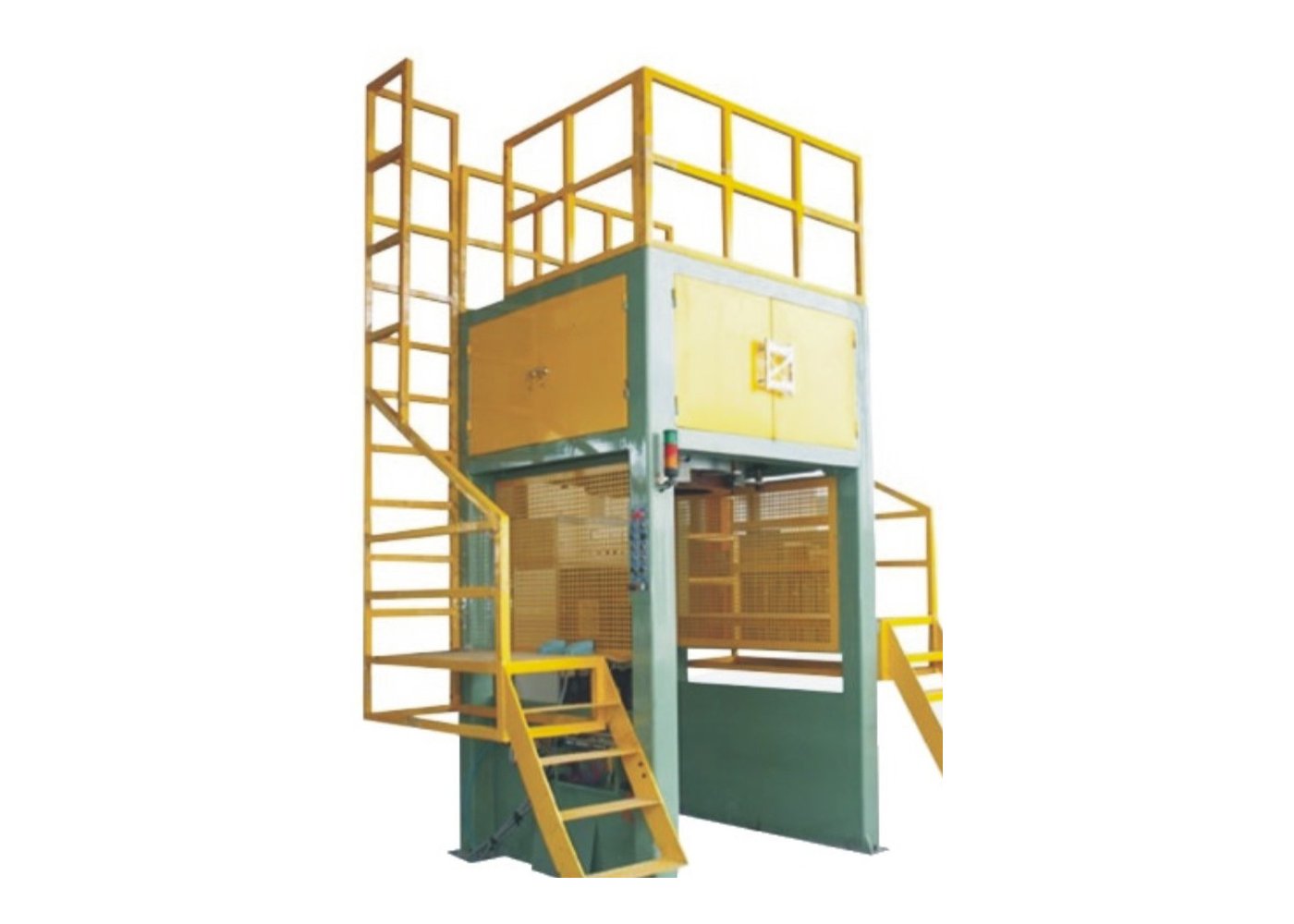

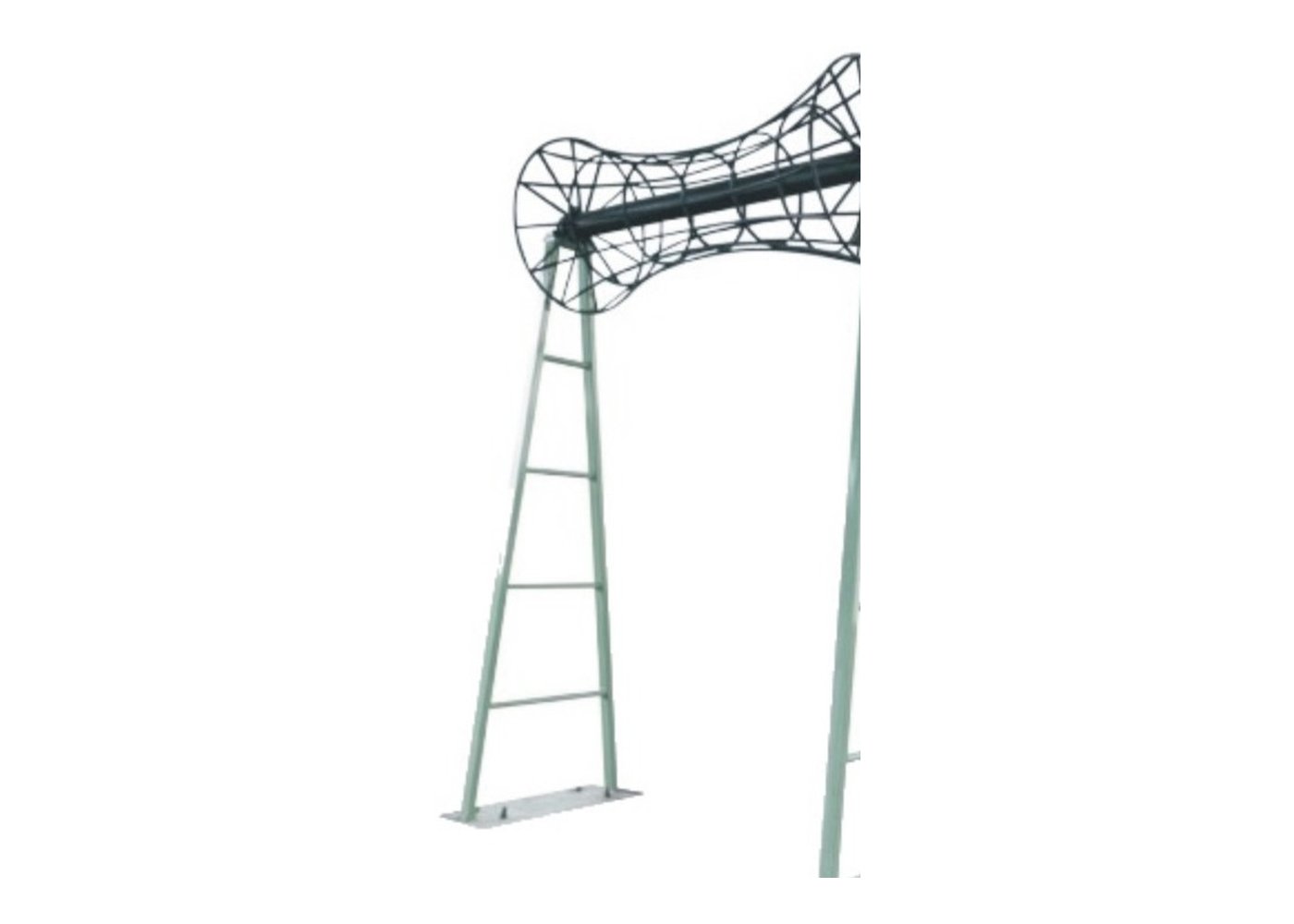

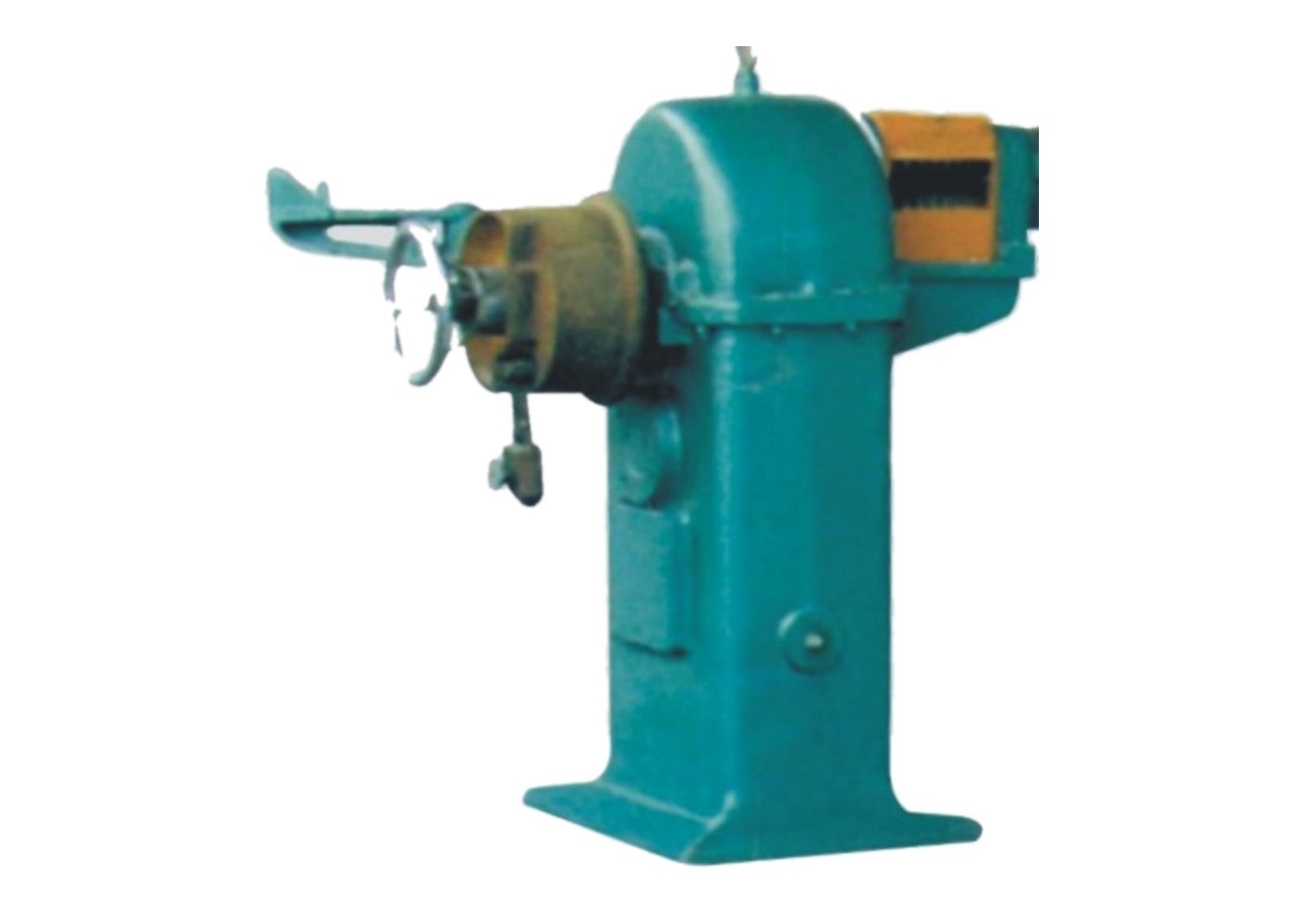

Photos show standard machines. Guards, colors and auxiliary equipment are configured per order.
