Aluminum-Magnesium Alloy Wire Drawing Machines
30-die alloy drawing at 2,500 m/min with ceramic capstans.
Φ0.5–1.2 → Φ0.1–0.25 mm2,500 m/min30 dies
Available models · 13
Overview

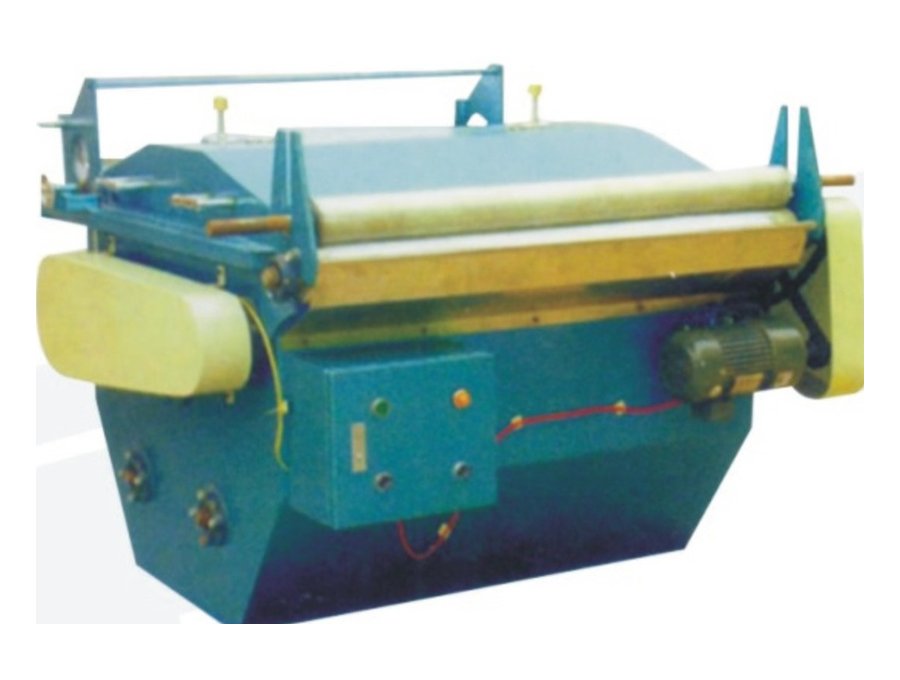

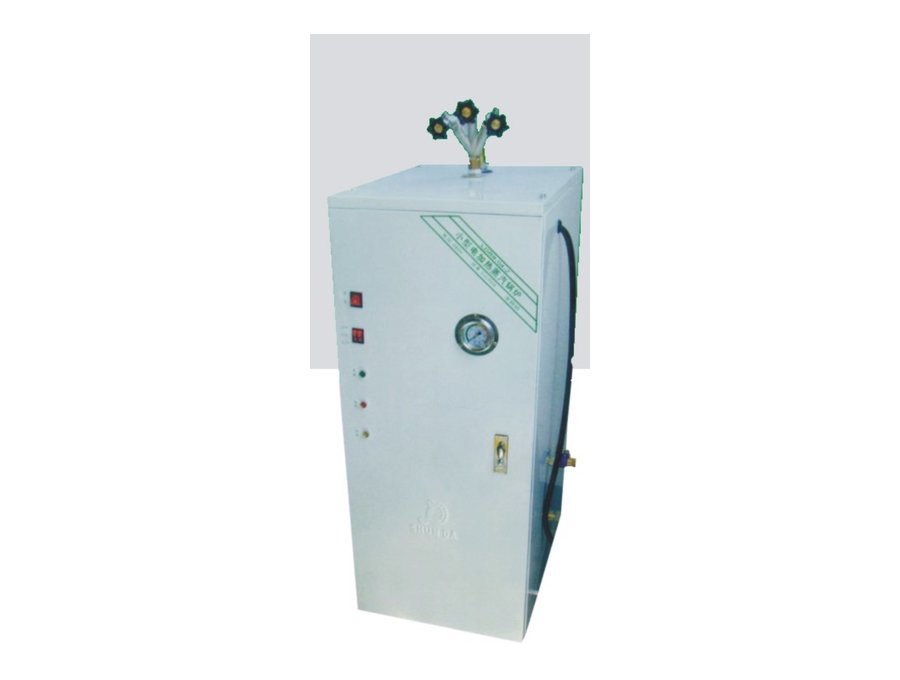

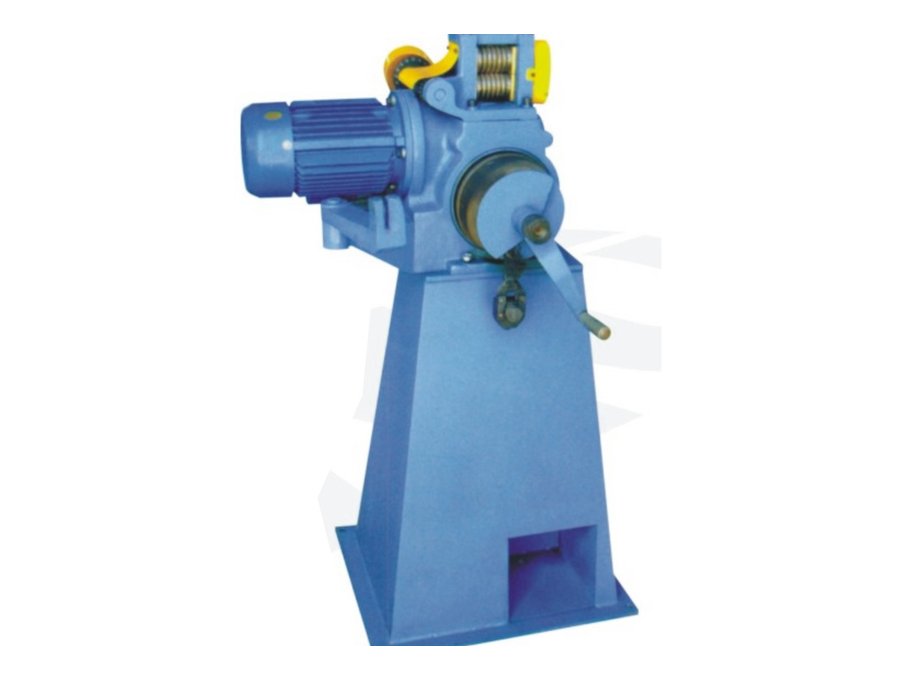

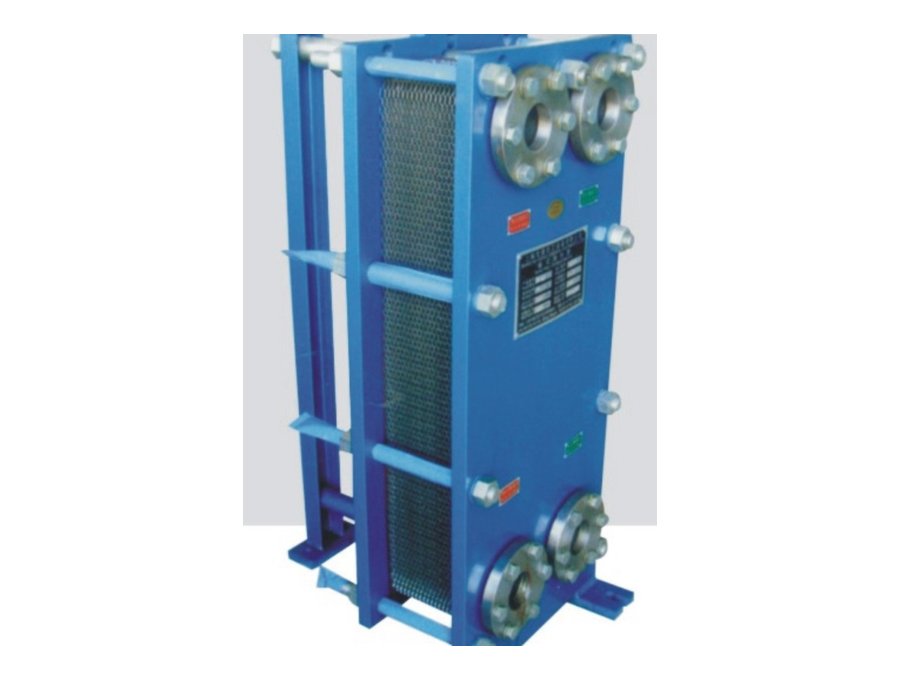

The 30D is configured for aluminium-magnesium alloy fine wire. Ceramic-plasma capstans, a 5.5 kW main motor and spray lubrication deliver 2,500 m/min with controlled surface quality. Steam generators, heat exchangers, filters and cramp machines complete the alloy line.
Φ0.5–1.2 → Φ0.1–0.25 mmWire range
2,500 m/minMax speed
30 diesConfiguration
TECHNICAL DATA
Full specifications
| Specification | 30D |
|---|---|
| Inlet diameter (mm) | Φ0.5–Φ1.2 |
| Outlet diameter (mm) | Φ0.1–Φ0.25 |
| Max drawing speed (m/min) | 2,500 |
| Max drawing dies | 30 |
| Slip ratio of machine | 15%–10.5% |
| Fix-speed capstan slip | 8% |
| Capstan surface | Ceramic plasma |
| Max capstan diameter (mm) | Φ315 |
| Fix-speed capstan diameter (mm) | Φ207 |
| Frame | Welded steel, annealed |
| Main motor | 5.5 kW |
| Spooler motor | 2.2 kW |
| Revise system | PID synchronous spooler |
| Inverter control | Dual inverter control |
| Transmission | Flat belt |
| Pay-off method | Over head |
| Traversing unit | Flat belt + synchronous motor |
| Tension control | Weight-balanced swing arm |
| Drawing lubrication | Spray |
| Suitable spool (mm) | Φ300 |
| Take-up capacity (kg) | 25–30 |
| Bobbin loading | Shaft type, screw clamp |
| Power source (V) | 380 |
| Brake | Electromagnetic |
| Dimensions L×W×H (mm) | 3,110 × 1,210 × 1,850 |
| Weight (kg) | 4,000 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
