Copper-Clad Aluminum & Steel Conduit Annealing Machines
Tubular annealing for 24–40 head CCA and CCS lines.
Φ0.1–0.4 mm finished120–220 m/min24–40 heads
View series
10EQUIPMENT SERIES
Copper-Clad Aluminum Wire Drawing Machines
Six CCA configurations from Φ3.0 mm inlet to Φ0.08 mm outlet.
Φ0.15–3.0 → Φ0.08–1.2 mm2,000 m/minCCA
Available models · 10
Overview
Copper-clad aluminium needs gentler capstan surfaces and controlled slip to protect the copper layer. The 24DL, 24DL-A/B, 14DL, 17MD and 20D use ceramic or tungsten-carbide capstans, spray lubrication and matched annealing for consistent CCA wire.
Φ0.15–3.0 → Φ0.08–1.2 mmWire range
2,000 m/minMax speed
CCAConfiguration
TECHNICAL DATA
Full specifications
| Specification | 17MD (CCA/Cu) | 14DL (CCA) | 24DL-A (CCA) | 24DL (CCA) | 24DL-B (CCA) | 20D (CCA) |
|---|---|---|---|---|---|---|
| Inlet diameter (mm) | Φ2.6–Φ3.0 | Φ1.0–Φ2.05 | Φ1.0–Φ2.05 | Φ0.5–Φ1.2 | Φ0.5–Φ1.0 | Φ0.15–Φ0.4 |
| Outlet diameter (mm) | Φ0.6–Φ1.2 | Φ0.25–Φ0.8 | Φ0.25–Φ0.8 | Φ0.15–Φ0.30 | Φ0.08–Φ0.25 | Φ0.08–Φ0.15 |
| Max drawing speed (m/min) | 1,200 | 1,200 | 2,000 | 2,000 | 1,800 | 1,800 |
| Max drawing dies | 17 | 14 | 24 | 24 | 24 | 20 |
| Slip ratio of machine | 15% | 15% | 13% | 13% | 10% | 10% |
| Fix-speed capstan slip | 11% | 8% | 8% | 8% | 6% | 6% |
| Capstan surface | Tungsten carbide | Ceramic plasma | Ceramic plasma | Ceramic plasma | Ceramic plasma | Ceramic plasma |
| Max capstan diameter (mm) | Φ257 | Φ316 | Φ316 | Φ194 | Φ194 | Φ120 |
| Fix-speed capstan diameter (mm) | Φ254 | Φ268 | Φ268 | Φ159 | Φ159 | Φ120 |
| Frame | One-piece cast iron | Welded steel, annealed | One-piece cast iron | One-piece cast iron | One-piece cast iron | One-piece cast iron |
| Main motor | 37 kW | 15 kW | 15 kW | 11 kW | 7.5 kW | 3.7 kW |
| Spooler motor | 11 kW | 4 kW | 5.5 kW | 3.7 kW | 2.2 kW | 2.2 kW |
| Revise system | PID synchronous spooler | |||||
| Inverter control | Dual inverter control | |||||
| Transmission | Chain | Flat belt | Gear belt | Flat belt | Flat belt | Flat belt |
| Pay-off method | Over head | |||||
| Traversing unit | Flat belt + timing motor | Flat belt + synchronous motor | Flat belt + synchronous motor | Flat belt + synchronous motor | Flat belt + synchronous motor | 50 W belt synchronous motor |
| Tension control | Pneumatic swing arm | Weight-balanced swing arm | Weight-balanced swing arm | Weight-balanced swing arm | Weight-balanced swing arm | Weight-balanced swing arm |
| Drawing lubrication | Spray | |||||
| Suitable spool (mm) | Φ400 / Φ500 / Φ630 | Φ400 | Φ300 | Φ300 | Φ300 | Φ250 |
| Take-up capacity (kg) | 60 | 25 | 35 | 35 | 35 | 25 |
| Bobbin loading | Shaft type, screw clamp | |||||
| Power source (V) | 380 | |||||
| Brake | Pneumatic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic |
| Dimensions L×W×H (mm) | 3,500 × 1,200 × 1,250 | 2,000 × 1,600 × 1,900 | 2,050 × 1,600 × 1,900 | 2,050 × 1,600 × 1,900 | 2,050 × 1,600 × 1,900 | 1,900 × 1,350 × 1,750 |
| Weight (kg) | 4,600 | 2,000 | 2,000 | 2,000 | 2,000 | 1,900 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
AUXILIARY EQUIPMENT
Range & auxiliary equipment

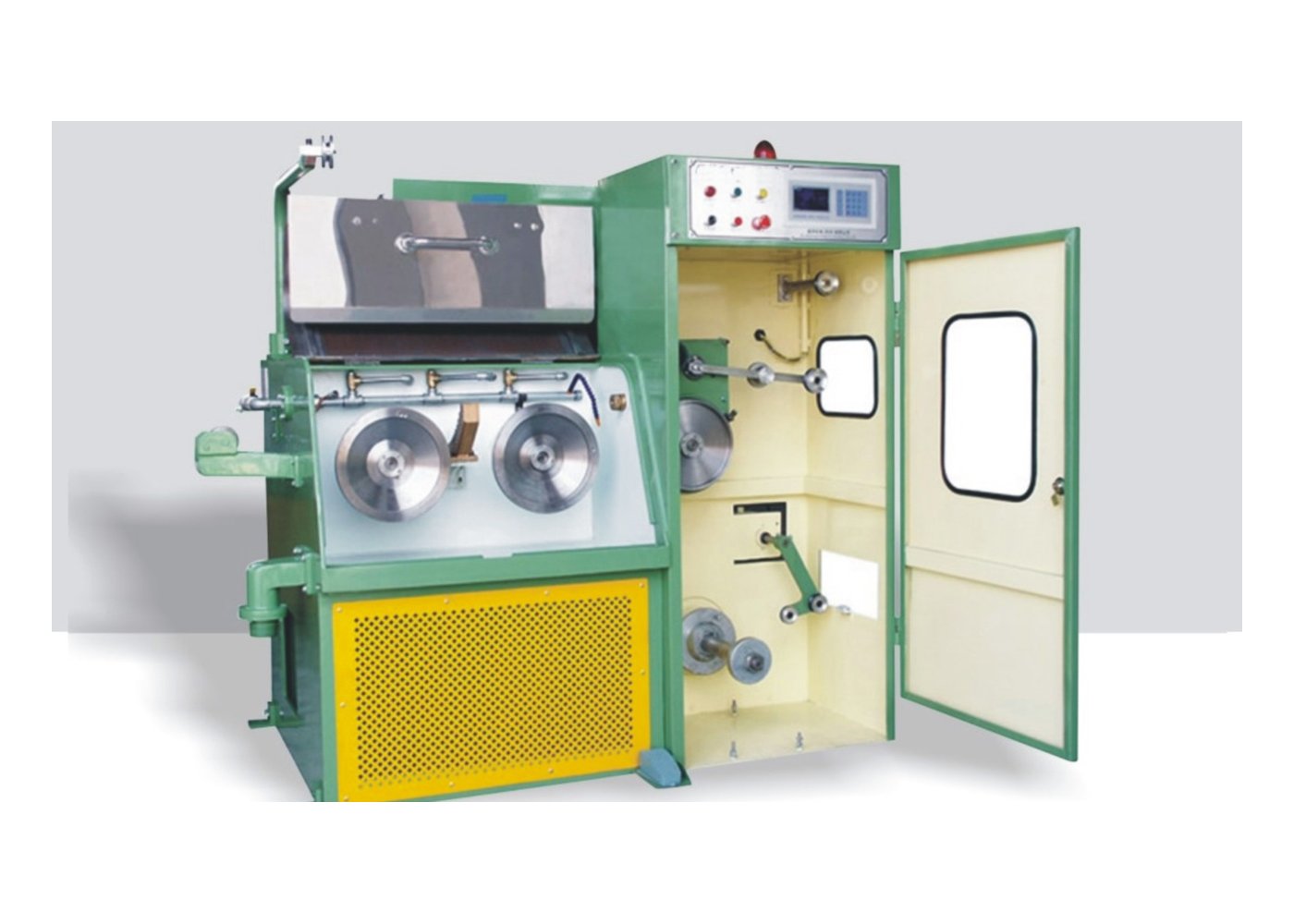

Photos show standard machines. Guards, colors and auxiliary equipment are configured per order.
