Medium & Fine Wire Drawing with Continuous Annealing + Preheating
Two-zone thermal control: DC three-section annealing plus preheating.
Φ0.26–3.5 → Φ0.25–1.2 mm1,500 m/minAnnealing + preheating
Available models · 05
Overview

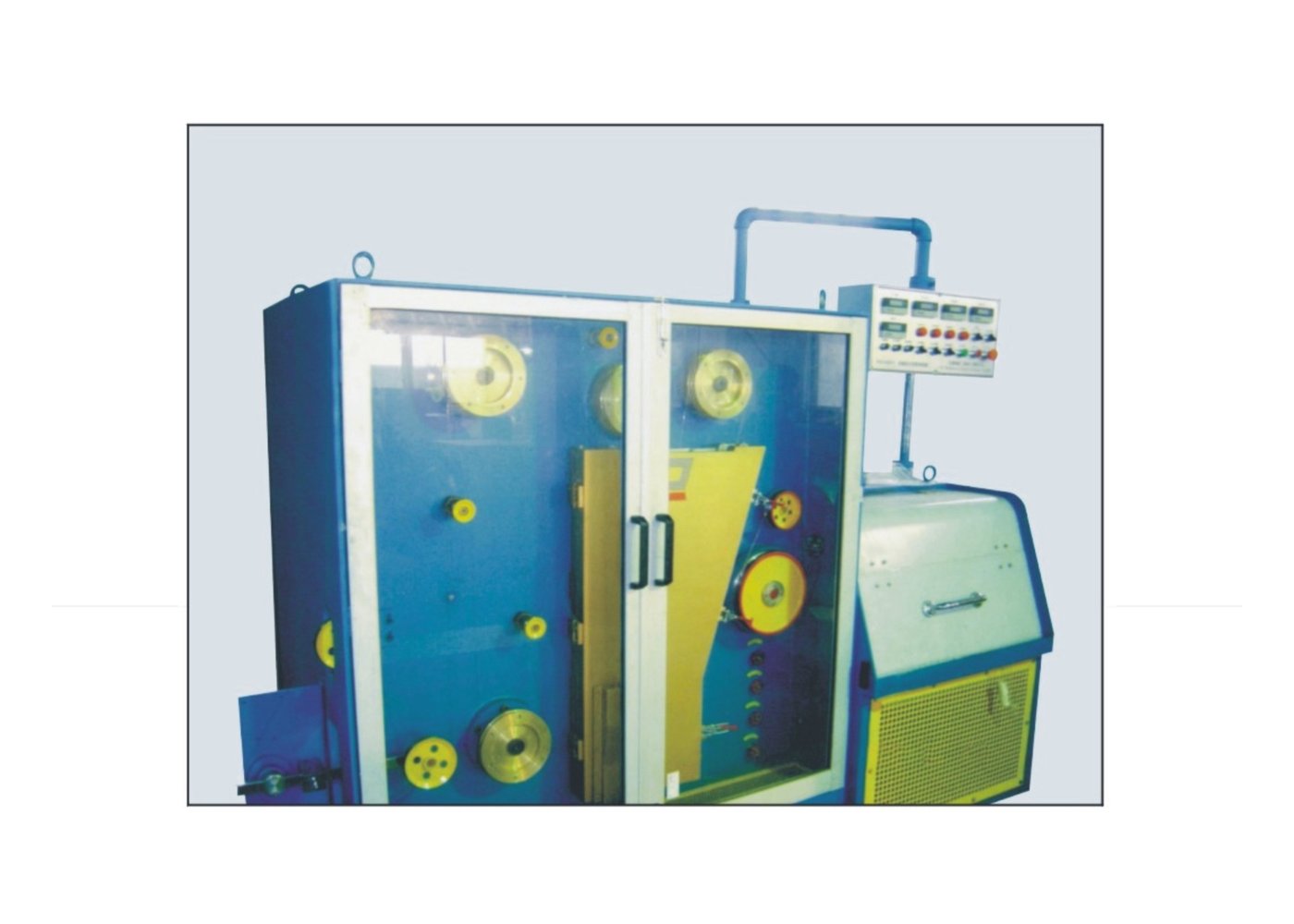

These lines add a preheating stage ahead of annealing to improve temperature stability and wire surface quality. The 14DTY covers medium/fine wire at 1,200 m/min; the 17TY extends the inlet range to Φ0.26–3.5 mm at 1,500 m/min.
Φ0.26–3.5 → Φ0.25–1.2 mmWire range
1,500 m/minMax speed
Annealing + preheatingConfiguration
TECHNICAL DATA
Full specifications
| Specification | 14DTY | 17TY |
|---|---|---|
| Inlet diameter (mm) | Φ0.8–Φ1.6 | Φ0.26–Φ3.5 |
| Outlet diameter (mm) | Φ0.25–Φ0.7 | Φ0.4–Φ1.2 |
| Max drawing speed (m/min) | 1,200 | 1,500 |
| Main motor | 18.5 kW + 5.5 kW | On request |
| Annealing method | DC three-section annealing | |
| Preheat method | DC three-section annealing | |
| Power source (V) | 380 | |
| Max annealing current (A) | 600 | 800 |
| Max annealing voltage (V) | DC 60 | DC 65 |
| Preheat voltage (V) | 0–30 | |
| Max preheat current (A) | 200 | 600 |
| Annealing power | 36 kVA | 52 kVA |
| Dimensions L×W×H (mm) | 2,568 × 1,538 × 2,974 | On request |
| Weight (kg) | 3,000 | 3,000 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
