14EQUIPMENT SERIES
Pay-Off Stands & Auxiliary Equipment
Eight pay-off designs for 0.025–8.0 mm wire lines.
Φ0.025–8.0 mm linesConstant tension8 designs
Available models · 14
Overview

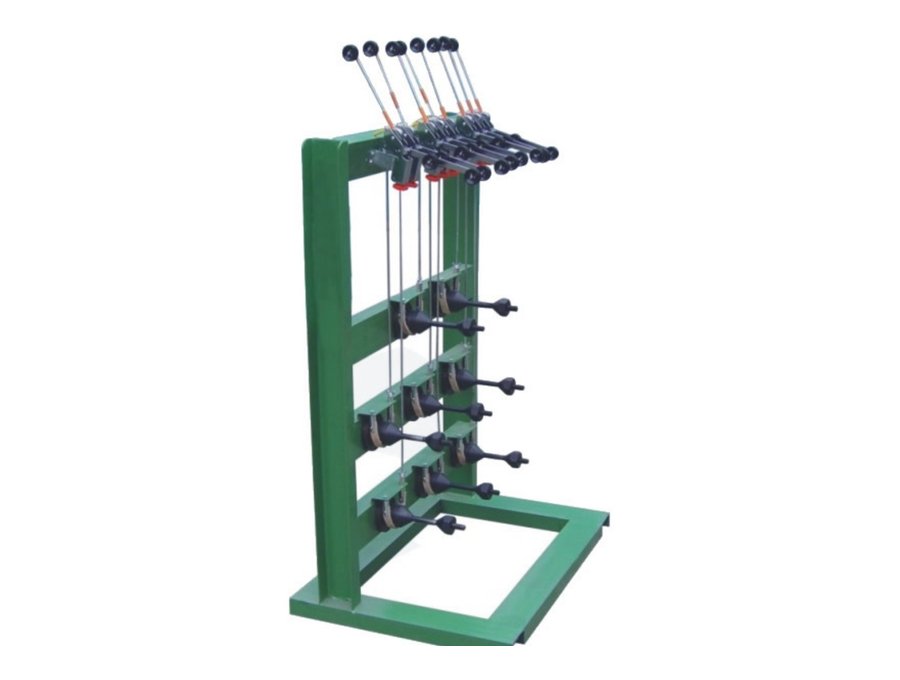

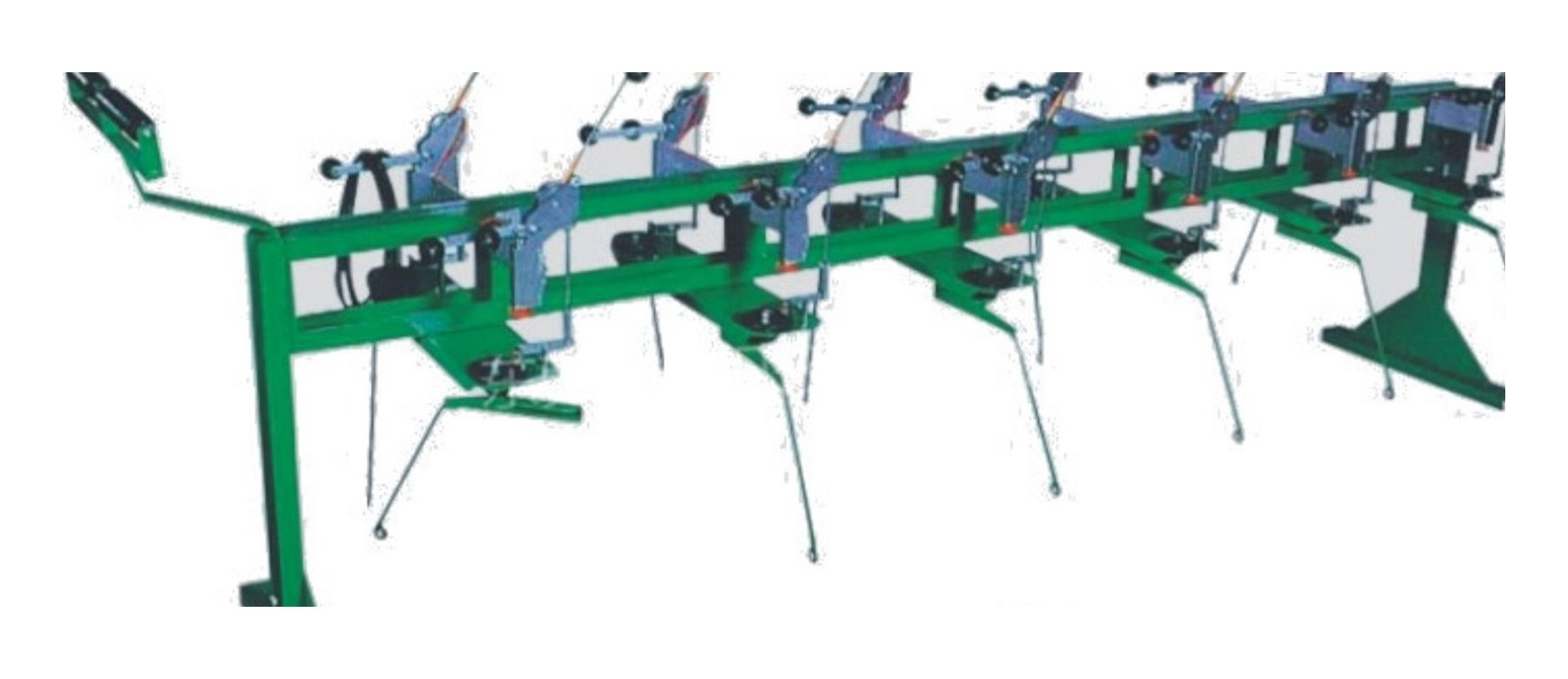

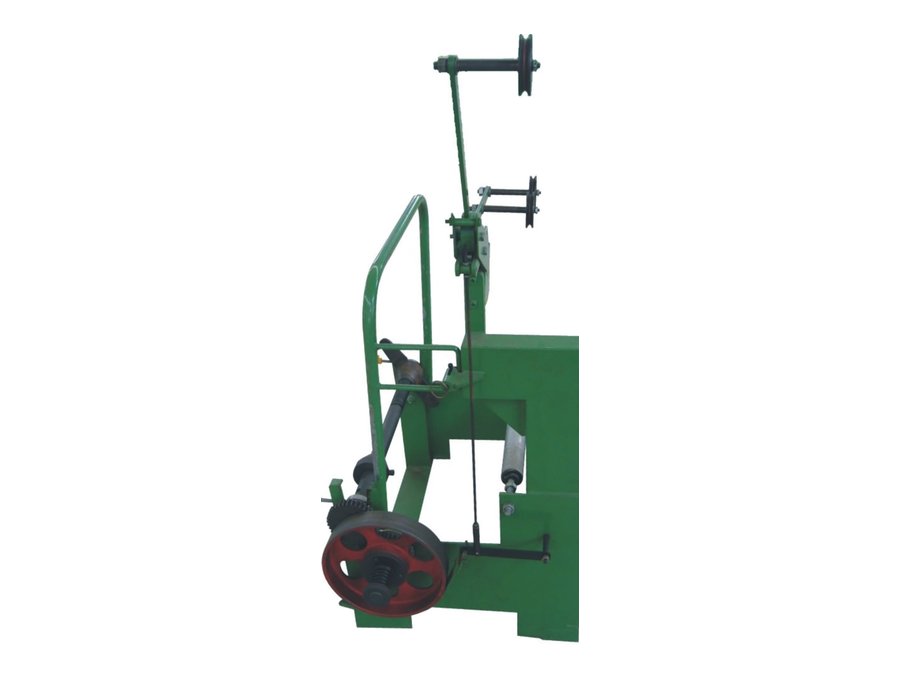

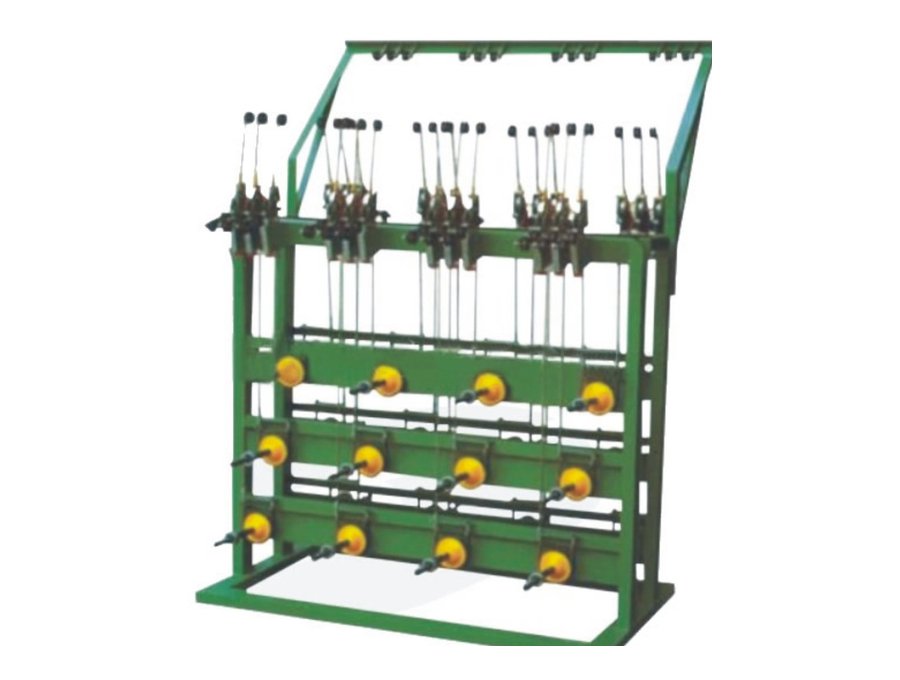

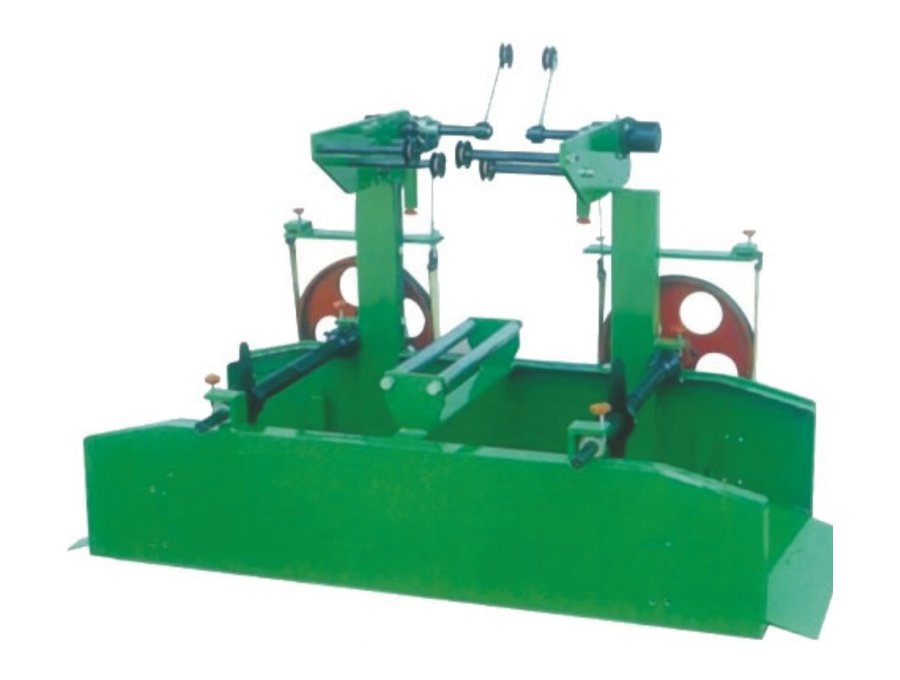

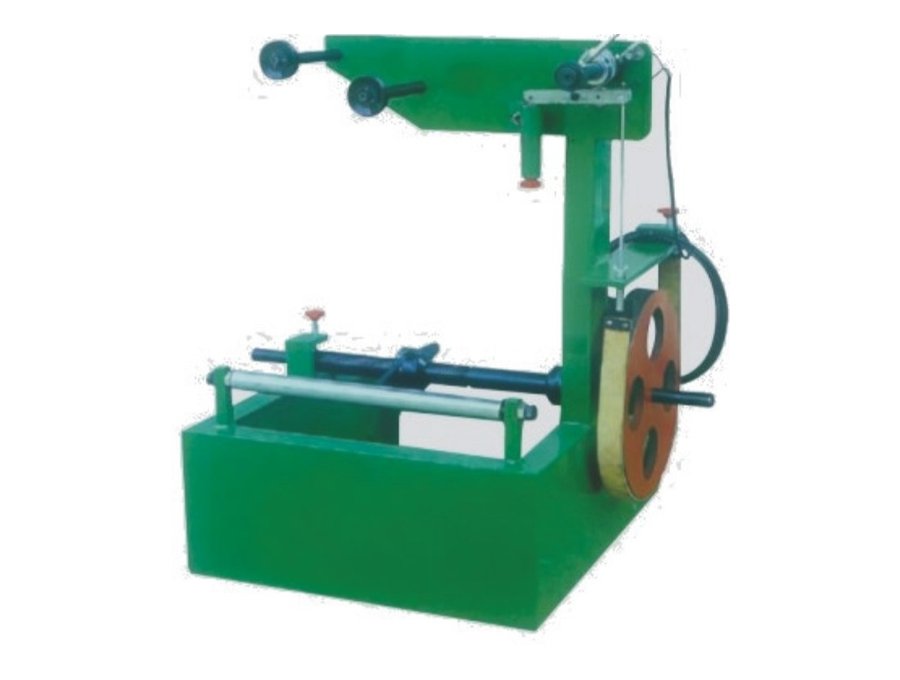

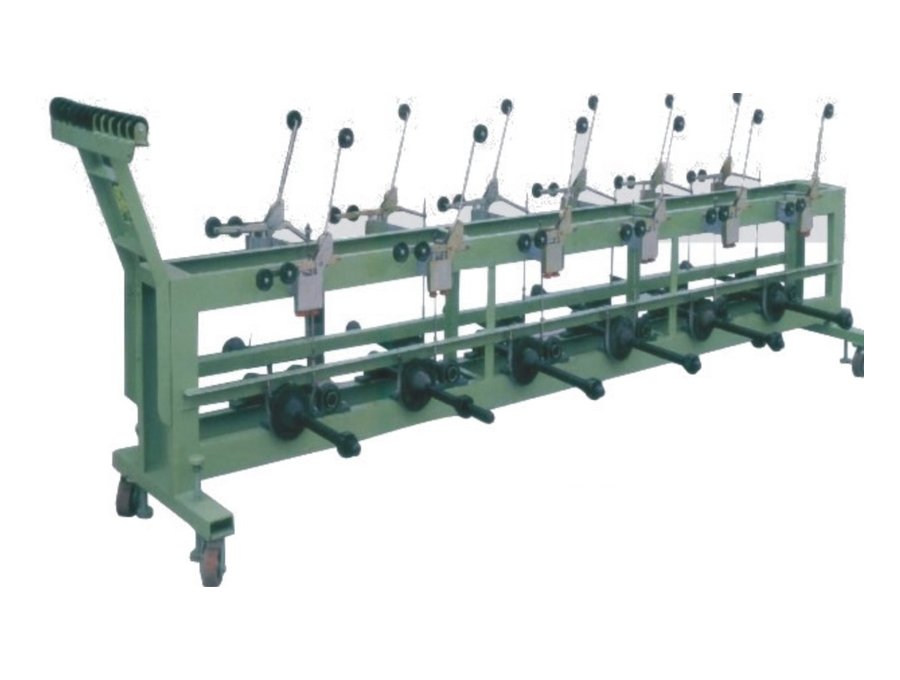

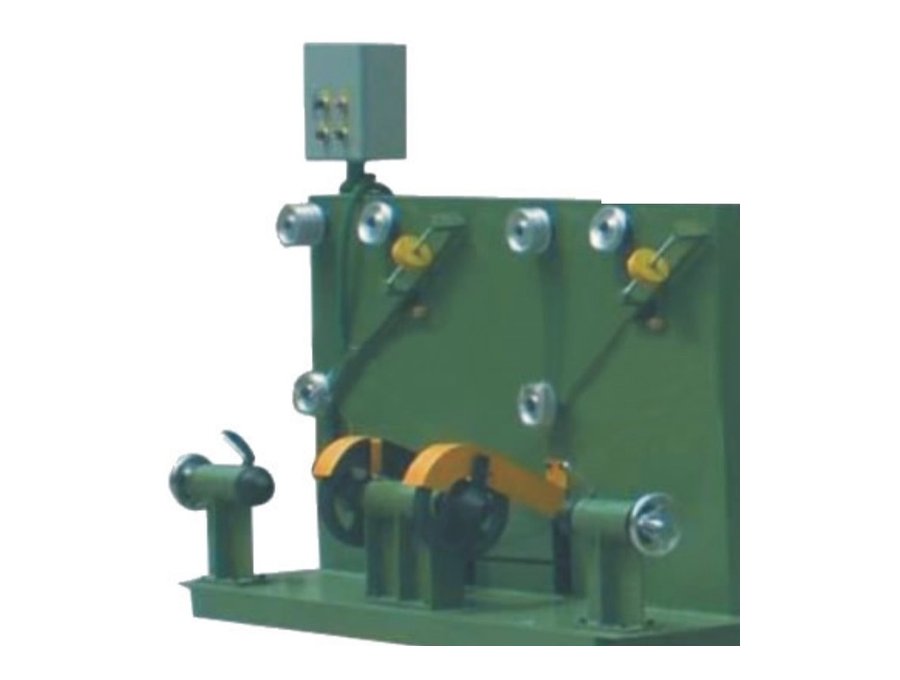

Stable pay-off is the first step in stable drawing. Honglang supplies single and double-shaft stands, powered and constant-tension passive designs, stationary reel and dynamic double-sided stands, plus vertical and ultra-fine wire pay-off units.
Φ0.025–8.0 mm linesWire range
Constant tensionMax speed
8 designsConfiguration
Pay-off stands are selected by wire diameter, spool size, spool weight and line speed. Tell us the line layout and we will recommend the right stand and tension control.
AUXILIARY EQUIPMENT
Range & auxiliary equipment
Photos show standard machines. Guards, colors and auxiliary equipment are configured per order.
