Fine Wire Drawing Machine with Continuous Annealing
In-line DC annealing for 0.08–0.32 mm wire at up to 2,000 m/min.
Φ0.5–1.6 → Φ0.08–0.32 mm2,000 m/minDC 3-section annealing
View series
09EQUIPMENT SERIES
Annealing & Tinning Machine
24–40 heads, even furnace temperature and double tin furnace.
Φ0.1–0.32 mm finished300 m/min24–40 heads
Available models · 09
Overview
The 40H/32H/24H annealing and tinning line processes 0.10–0.32 mm wire at up to 300 m/min. A uniform annealing furnace, double tin furnace and double-deck take-up combine energy efficiency with product flexibility and a smaller footprint.
Φ0.1–0.32 mm finishedWire range
300 m/minMax speed
24–40 headsConfiguration
TECHNICAL DATA
Full specifications
| Specification | 40H | 32H | 24H |
|---|---|---|---|
| Number of heads | 40 | 32 | 24 |
| Finished wire diameter (mm) | Φ0.1–Φ0.32 | ||
| Max drawing speed (m/min) | 300 | ||
| Pay-off method | Brush pay-off | ||
| Annealing method | Tubular annealing | ||
| Tinning method | Double-furnace hot dip, die wiper | ||
| Take-up method | Torque motor 1.2–1.8 N·m | ||
| Annealing length (m) | 4.5 | ||
| Spool size | PT5–PT25 | ||
| Installed thermal power (kW) | 64.5 | ||
| Installed drive power (kW) | 12 | 10 | 9 |
| Total installed power (kW) | 76.5 | 74.5 | 73.5 |
| Traversing control | Independent motor-driven traversing | ||
| Dimensions L×W×H (mm) | 18,800 × 2,200 × 1,600 | ||
| Weight (kg) | 3,500 | 3,500 | 3,000 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
AUXILIARY EQUIPMENT
Range & auxiliary equipment

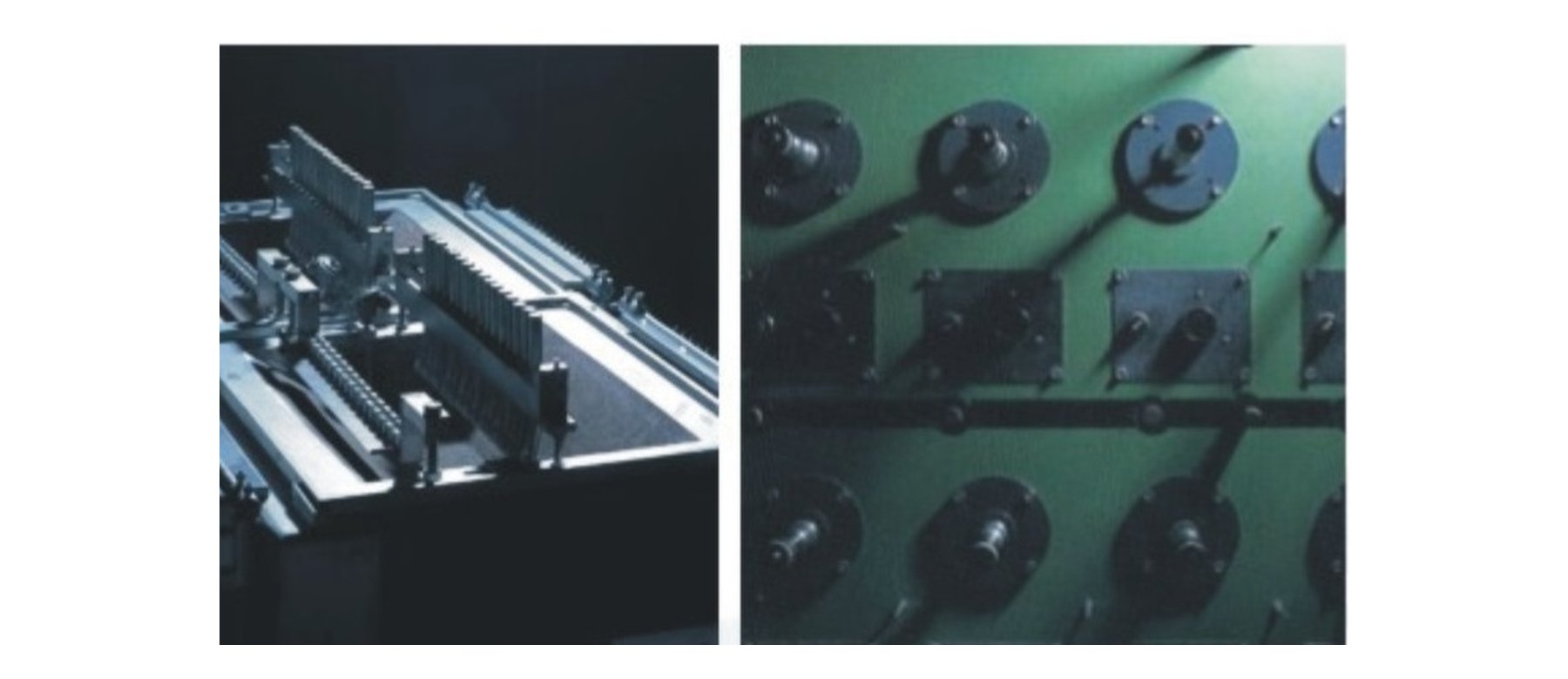

Photos show standard machines. Guards, colors and auxiliary equipment are configured per order.
