06EQUIPMENT SERIES

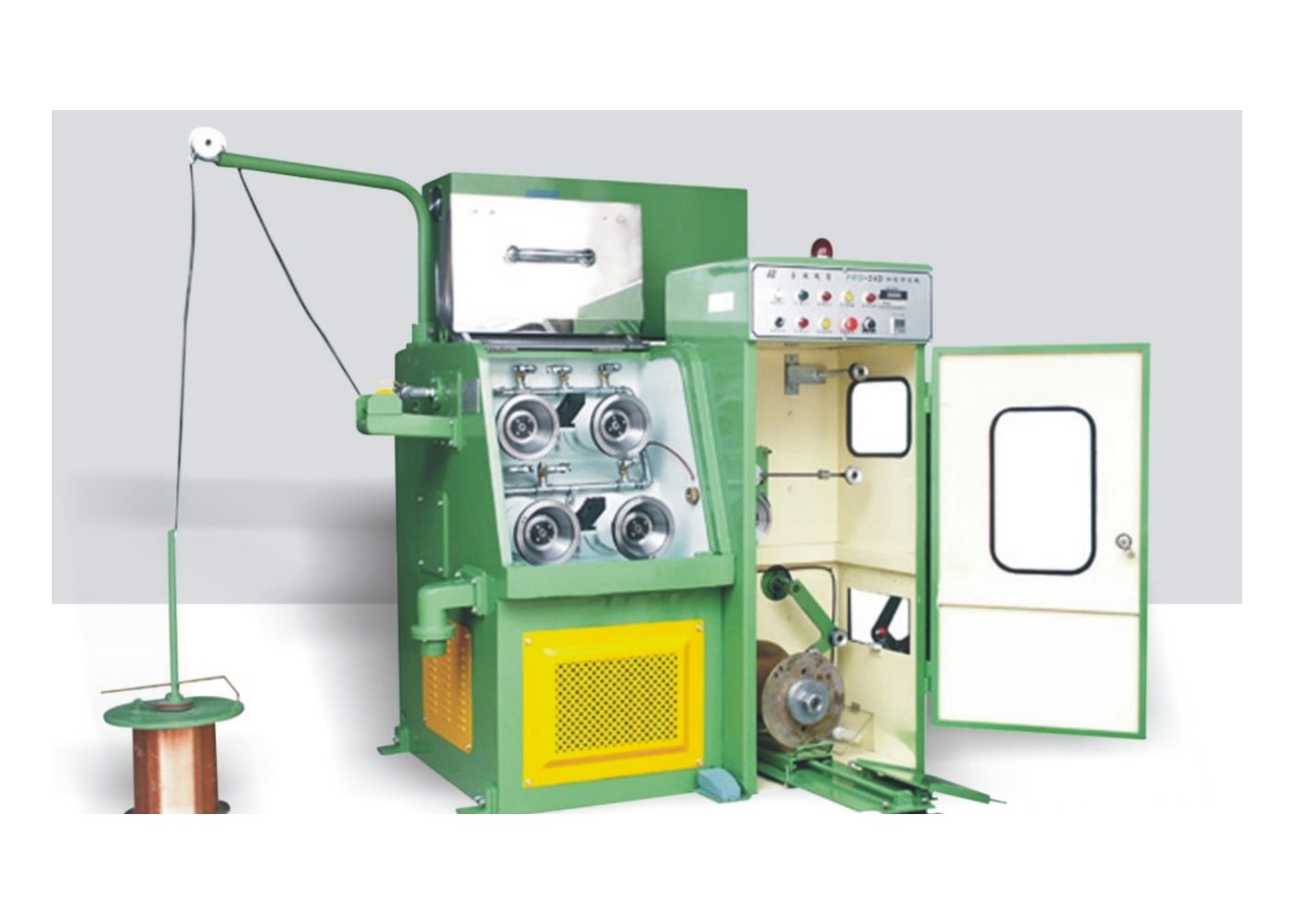

Fine Wire Drawing Machines (High-Speed Series)
24-die high-speed fine drawing for 0.08–0.6 mm wire, up to 2,500 m/min.
Φ0.5–1.6 → Φ0.08–0.6 mm2,500 m/min24 dies
Available models · 06
Overview
The 24D/24DS and 14D/13DH cover high-speed fine drawing and larger-capacity production. Ceramic-plasma or tungsten-carbide capstans, flat-belt drive and PID synchronous spooling keep surface quality and elongation consistent.
Φ0.5–1.6 → Φ0.08–0.6 mmWire range
2,500 m/minMax speed
24 diesConfiguration
TECHNICAL DATA
Full specifications
| Specification | 24D | 24DS | 14D | 13DH |
|---|---|---|---|---|
| Inlet diameter (mm) | Φ0.5–Φ1.0 | Φ0.5–Φ1.0 | Φ0.8–Φ1.6 | Φ1.8 max |
| Outlet diameter (mm) | Φ0.08–Φ0.25 | Φ0.08–Φ0.25 | Φ0.25–Φ0.6 | Φ0.35–Φ1.0 |
| Max drawing speed (m/min) | 2,000 | 2,500 | 1,500 | 1,200 |
| Max drawing dies | 24 | 24 | 14 | 13 |
| Slip ratio of machine | 13% | 13% | 15% | 15% |
| Fix-speed capstan slip | 8% | |||
| Capstan surface | Ceramic plasma | Ceramic plasma | Tungsten carbide | Ceramic plasma |
| Max capstan diameter (mm) | Φ194 | Φ242 | Φ316 | Φ315 |
| Fix-speed capstan diameter (mm) | Φ159 | Φ207 | Φ268 | Φ223 |
| Frame | One-piece cast iron | One-piece cast iron | Welded steel, annealed | Welded steel, annealed |
| Main motor | 11 kW, three-phase AC | 11 kW, three-phase AC | 15 kW, three-phase AC | 18.5 kW, three-phase AC |
| Spooler motor | 3.7 kW | 3.7 kW | 4 kW | 15 kW |
| Revise system | PID synchronous spooler | |||
| Inverter control | Dual inverter control | |||
| Transmission | Flat belt | |||
| Pay-off method | Over head | |||
| Traversing unit | Flat belt + synchronous motor | |||
| Tension control | Weight-balanced swing arm | Weight-balanced swing arm | Weight-balanced swing arm | Cylinder sliding buffer |
| Drawing lubrication | Spray | |||
| Suitable spool (mm) | Φ300 | Φ300 | Φ300–Φ400 | Φ500 / Φ630 |
| Take-up capacity (kg) | 50–60 | 50–60 | 50–80 | 200–500 |
| Bobbin loading | Shaft type, screw clamp | |||
| Power source (V) | 380 | |||
| Brake | Pneumatic | |||
| Dimensions L×W×H (mm) | 2,050 × 1,600 × 1,900 | 2,050 × 1,600 × 1,900 | 1,950 × 1,100 × 1,750 | 2,050 × 1,600 × 1,900 |
| Weight (kg) | 2,000 | 2,000 | 2,000 | 2,500 |
Swipe horizontally to compare all models.
All values are for standard configurations. Dimensions and power ratings may change with options; please confirm the final datasheet with our engineering team.
AUXILIARY EQUIPMENT
Range & auxiliary equipment
Photos show standard machines. Guards, colors and auxiliary equipment are configured per order.
